SUNBEAM TIGER 5-SPEED CONVERSIONS

Category: SKU: SUNBEAM TIGER 5-SPEED CONVERSIONS

Description























































































MODERN DRIVELINE  Offers  five and six-speed conversions for
Small Block, Big Block & LS swapped Sunbeam Tigers

Our line of products offers simple ways to upgrade your 3 or 4-speed
to a Tremec five-speed or a complete automatic to five or six-speed overdrive
  We have you covered.

Benefits:

  • Increase in fuel economy with overdrive.
  • Lower RPM’s for more drive-ability and a much quieter in-car feeling.
  • Reduce wear on your engine & drive-train parts
  • Reduce engine temperatures, promoting a longer-lasting engine.

Experience the MDL Difference,

  • We extend the manufacturer’s warranty by an extra year… with a 1-year grace period.
  • We offer the best in the industry customer service.
  • When you purchase a complete MDL Conversion Package you get, lifetime technical support.

Please call For availability at 208-453-9800

One day a good friend come to us and said can you build a five-speed to fit a Tiger?
It just so happened we were developing our Side shift program for the TKX. As it turns out the new shifter and low profile top covers for the TKX was the right solution for the Tiger.
Working Closely with Root Group Depot in Santa Clara CA, Bill provide the guidance needed for us to build the right five-speed to fit the Tiger without modifying the car.
Since Tiger was produced with both 260 and 289, we need to develop a five-speed package for both the five-bolt block and well as the six-bolt block.
After looking it over, we were able to not only provide a well-fitting that defined belief we work well.  The TKX can handle can anything you want to throw out at all the while providing a pleasant drive experience.

While auto crossing at a Tiger United event, a long-time Tiger owner test drove one of the first TKX installs.  He came back and asked if he had shifted on the course?
Without a doubt he did but it was smooth he didn’t remember doing so.
If you want to make your five install stealthy, you can.
The TKX is offered in two shifter types, one that will allow for the stock four-speed lever to be reused, and the other is for a Hurst lever to be used.

Only you will know it’s there.

Bill Doolittle’s Sunbeam Tiger

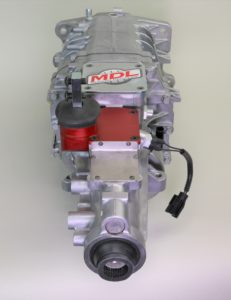

Modern Driveline’s Sunbeam Tiger 5 Speed Conversion TREMEC TKX Five-speed overdrive transmission, is engineered to fit your Sunbeam Tiger without cutting or modifying the tunnel.

You get durability surpassing Ford’s legendary Top Loader four-speed with vastly improved fuel consumption.
You get brute performance in gears one through four and efficiency in overdrive for highway cruising. You really can have it all in a great British/American classic.



Bolt-in swap

The case is specially modified to bolt into the Sunbeam Tiger without cutting and modifications. Modern Driveline’s TREMEC TKX is the most rugged five-speed transmission you can bolt into a vintage Tiger.

The TREMEC TKX from Modern Driveline has been field-tested in a Concours-restored Sunbeam Tiger and it is ready for installation in your vintage Tiger.
The Tiger TKX is a bolt-in swap with no special modifications or cutting. Once installed with a stock Tiger shifter handle, no one knows it’s there but you.
We are confident you will love the TKX Tiger package from MDL and expect your Ford Top Loader to be on the shelf for a long time to come.

Custom Fit


Offset shifter enables perfect alignment with Shifter location and uses original shift lever. The TKX New design provides the clearance to fit within the tunnel



What makes the TKX such a good fit for the Tiger?
MDL has massaged the TKX’s main case to where it clears the Tiger’s transmission tunnel without modifications to the vehicle.
The shifter is offset, which puts it in the Tiger’s correct location. With the Tiger’s original shifter handle, no one will know there’s a TKX underneath.

Shift-ability

The difference between a TREMEC TKX and a Modern Driveline enhanced Tiger TKX is the important details most driveline companies miss completely.
Our Tiger TKX is perfectly matched to the Tiger’s tunnel to be a bolt-in. Tiger TKX shifts so smooth you don’t have to even think about it while being tougher than a stock Toploader four-speed.

Configurations to match your needs:

Whether you have the original 5-bolt block or the 6-bolt block we have you covered.
Different overdrive gear ratios are available to match your rear-end ratio.
Everything from the back of the block to the driveshaft is available too.



Five-Bolt Block

  • Tiger Spec TKX Transmission
  • Five bolt TKX SFI spec Bellhousing
  • Kevlar/Steel Back Organic Clutch Set
  • Custom TKX Tiger Crossmember & Mount
  • Steel Driveshaft with 31-spline Slip Yoke
  • Speedometer Drive Parts
  • OEM Style Ford Shift Knob, Handle & Boot
  • Back-Up Light Harness
  • Complete Hardware Installation Kit
  • TKO Spec Lube

Six-bolt Block

  • Tiger Spec TKX Transmission
  • Kevlar/Steel Back Organic Clutch
  • Custom TKX Tiger Crossmember & Mount
  • Steel Driveshaft with 31-spline Slip Yoke
  • Speedometer Drive Parts
  • OEM Style Ford Shift Knob, Handle & Boot
  • Back-Up Light Harness
  • Complete Hardware Installation Kit
  • TKX Spec Lube
  • Note – that No bell housing is required as the stock four-speed bell housing is retained.

Available Options & Upgrades

  • Carbon Fiber Lined synchronizer rings on the 2,3,4th gears for improved high rpm shifts.
  • Aluminum or Lighten Billet Steel 157-tooth Flywheel with 10/10.5-inch clutch bolt pattern
  • Full Kevlar clutch set in either 10” or 10.5”
  • Internal Tilton Hydraulic Throw-out bearing
  • Polished Gears for friction reduction and lower operating temperatures

We also Have OIL COOLERS   click this link to find out more

Convinced that you need a Sunbeam Tiger 5 Speed Conversion?

    Click Here to Shop FORD TKX

Additional information:



TKX Service Manual

SPECS

HOVER OVER IMAGES TO ENLARGE







APPLICATION

INSTALLATION DIMENSION IN INCHES

BELLHOUSING

A B C D E F G H I J
FORD 19.52 / 16.57 / 12.68 7.21 22.1 24.2 8.00 6.00 2.38 4.00 3.75 5.50 OE. 4-SPEED MOST


FEATURES:

  1. Forward Shift Provision.
  2. Standard reversible Rear Shifter.
  3. Reverse Light Switch.
  4. Mechanical Speedometer Output.
  5. Neutral Safety Indicator Switch.
  6. Ford or GM Style 4-Speed Bolt Pattern.
  7. Traditional Mechanical Clutch Release Bearing Retainer.
  8. The new design eliminates exterior cluster bearing support leak path, which provides greater strength.
  9. End loading design for greater strength.
  10. No counterweight boss for better cross member clearance.
  11. Electronic speedometer output.
  12. Fill & drain plugs for easier maintenance.
  13. Small service cover for greater clearance, capable of an alternate shifter position.
  14. Smooth Low top profile top cover for greater tunnel clearance.
  15. Separate Ford & GM case pattern & input configurations.
  16. Rounded case design &external webbing for greater strength.
  17. Center core with gaskets to seal faces together.
  18. GM & Ford trans-mount patterns on ALL TKX transmissions.

    Dry Weight 99 lbs / 50 kg
    Fluid Capacity 2.7 qt / 2.6 ltr

FORD Gear Ratios Spline count
Item # 1st 2nd 3rd 4th 5th Input output
TCET17765 2.87 1.89 1.28 1.00 0.68 26 31
TCET18084 2.87 1.89 1.28 1.00 0.81 26 31
TCET18085 3.27 1.98 1.34 1.00 0.72 26 31
TCET18086 3.27 1.98 1.34 1.00 0.72 10 31



  • Lubricant Specifications

    For all Tremec TKX 5-Speed models, the recommended oils are
    Amzoil ATF or Synchromesh
    Tremec High-Performance manual transmission Fluid (HP-MTF)
    Mobil 1 Synthetic ATF.

    Fluid capacity is 2.7 quarts / 2.6 Liters.

APPLICATION INSTALLATION DIMENSION IN INCHES BELLHOUSING
A B C D E F G H
TIGER 22.09 6.59 22.08 24.2 2.20 SBF
