Features:

• This conversion uses the stock pedal
• Pedal linkage to convert pull to push
• No-drill, Bolt-in application
• Available in three bore sizes to match slave cylinder volume
• Works with SOHC / DOHC / Modular V8

Comes with:

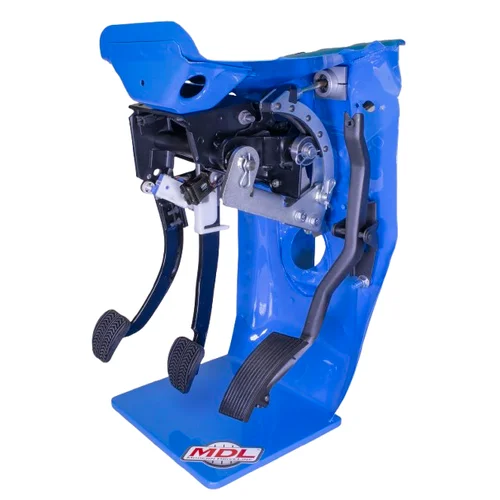

The LF Series Hydraulic Clutch Master is a revolutionary design for retrofitting hydraulics into the classic cars Modern Driveline solved these issues with innovative pedal linkage that matches pedal travel with a long stroke

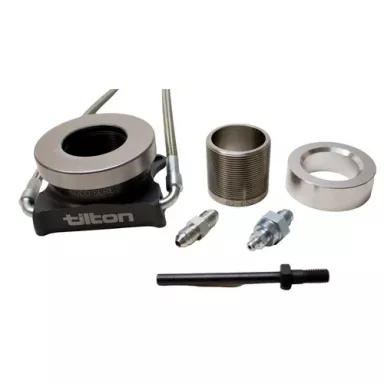

master cylinder for a reduced clutch pedal load.The linkage allows for great design flexibility and greatly improved driver's experience.We offer the master cylinders in three different bore sizes to match the slave cylinder volume requirements.In most cases, our .750" bore with 1.4" stroke is the perfect match for most slave cylinders on the market and all our LF series slaves, Tilton 6000 Series internal bearings. Click here to learn more about the Tilton 6000 Slave Throw-out bearing

• The long-stroke, small-bore master cylinder provides minimized loading of the firewall and pedal effort.
• A firewall plate with mechanical linkage greatly reduces firewall load and pedal effort while providing design flexibility to use the stock clutch rod hole.
• The mechanical linkage design also allows the full stroke of the pedal to maximize clutch modulation while keeping the cylinder perpendicular to the firewall and providing a mechanical advantage thus reducing the pedal pressure required to operate the clutch.

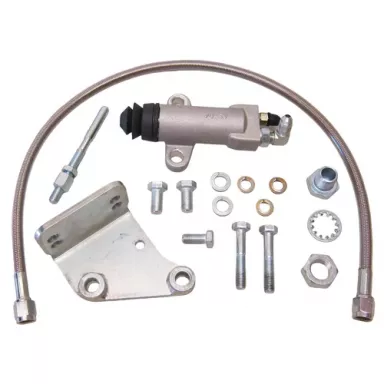

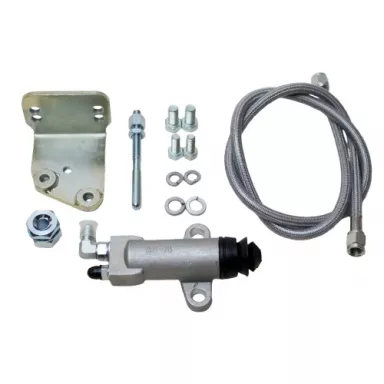

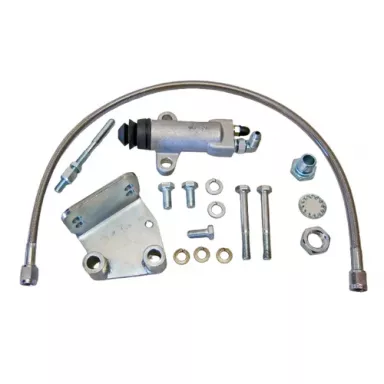

Complete SolutionsComplete solutions of master and slave need to be optimized with matching fluid volume.For this reason, we offer kits specifically matched to our slaves or to existing slaves on the market. See our recommended slave cylinders below. Our Type 2 .750" Bore x 1.4" stroke master coupled with our complete line of slave cylinders for T5, T45, 3650, and T56/Magnum for a complete engineered solution the first time.This upgrade makes driving fun again with minimal pedal effort and exact actuation every time.Type 3 .750" bore x 1.4" stroke also available All of our hydraulic master kits are 'hand-assembled in-house 'so that we may control quality & precision.They are all checked & double-checked for fit & finish before they go in the box for shipping. Don't see what you're looking for, please call208-453-9800

Click here for helpful guides & information on our HOW TO page Award winner of SEMA 2019 Best New Engineered Product

MEDIUM: DIFFICULTY LEVEL ON THIS INSTALL
