Key Features

Extended 3/8" diameter x 1-1/4" length designed specifically for 0.500" spacer plate applications
Ensures proper dowel engagement when bellhousing spacer is installed between transmission and bellhousing
Precision machined for accurate T56/Magnum-to-bellhousing alignment
Sold as a pair - two pins required per transmission
Compatible with T56 and T56 Magnum transmissions

Description

When installing a 0.500" spacer plate between your T56 or T56 Magnum transmission and bellhousing, standard-length dowel pins become too short to maintain proper engagement. These extended dowel pins solve that critical fitment issue by providing the additional length needed to pass through the spacer plate thickness while still ensuring solid engagement on both sides.

T56 Magnum transmissions use dowel pins positioned at the 2 and 10 o'clock locations to precisely locate the transmission to the bellhousing - making proper dowel pin engagement absolutely critical for drivetrain longevity. Unlike transmissions that register off the front bearing retainer, the T56/Magnum registers directly off these dowel pins. Correct alignment with the crankshaft centerline is essential - misalignment creates improper tooth contact patterns between the input shaft and countershaft, leading to accelerated gear wear or catastrophic failure under torque.

These precision-machined steel dowel pins maintain the exact positioning required for proper transmission operation even with a 0.500" spacer installed. Whether you're running a thicker spacer to accommodate multi-disc clutch assemblies, high-style pressure plates, or custom input shaft configurations, these extended pins ensure full engagement and precise bellhousing-to-transmission alignment.

Kit Includes

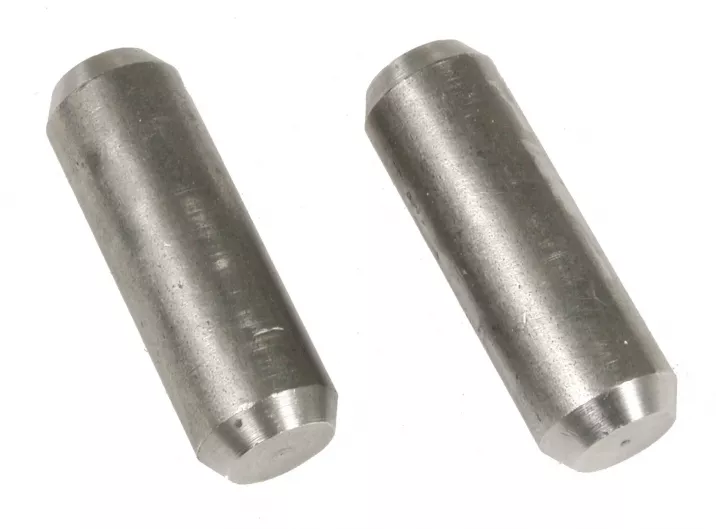

2 precision-machined steel dowel pins - 3/8" diameter x 1-1/4" length

Extended Dowel Pins | T56/Magnum Bellhousing | 3/8" x 1-1/4" for 0.500" Spacer | Pair
