    McLeod RST Twin Disc Clutch Kit | 2001-Up Mustang V8 | 26-Spline Organic

    Thumbnail Filmstrip of McLeod RST Twin Disc Clutch Kit | 2001-Up Mustang V8 | 26-Spline Organic Images

      Purchase McLeod RST Twin Disc Clutch Kit | 2001-Up Mustang V8 | 26-Spline Organic

      McLeod Racing

      McLeod RST Twin Disc Clutch Kit | 2001-Up Mustang V8 | 26-Spline Organic

      SKU: MD-514-6912-07

      No reviews yet. Write a review!
      $965.00 Original Price
      Price excludes tax

      Twin Disk Clutch Assembly - Organic 26-Spline

      Fits:
      Mustang 2001-UP V8 4.6 , 5.0 , 5.4.

      Join Waitlist

      Sign up with your email to be notified when this is back in stock!



      McLeod RST Twin Disc Clutch Kit | 2001-Up Mustang V8 | 26-Spline Organic

      Key Features

      • 800 horsepower capacity for high-powered street builds
      • Twin organic-lined friction discs deliver smooth engagement with soft pedal effort
      • 26-spline hub with 1.125-inch input shaft diameter for TREMEC T-56 compatibility
      • 246mm (9.687-inch) disc diameter for maximum clamping surface
      • Sprung hub design with diaphragm-style pressure plate
      • McLeod patented adapter ring fits Ford 164-tooth Modular flywheels
      • Fits 2001-up Mustang V8 applications: 4.6L, 5.0L Coyote, and 5.4L
      • Made in the USA

      Description

      When your Mustang's power output pushes past what a single-disc clutch can reliably hold, the McLeod RST Twin Disc delivers an economical twin-disc solution rated to 800 horsepower while maintaining genuine street manners. This clutch kit solves the common problem of choosing between holding capacity and daily driveability—you don't have to sacrifice one for the other.

      The twin 246mm organic-lined friction discs double the engagement surface compared to single-disc setups. Organic facings provide smooth, progressive engagement with a soft pedal effort, making this clutch kit ideal for the street performance enthusiast who doesn't want the harsh, grabby engagement of metallic race compounds. The sprung hub design absorbs drivetrain shock, while the diaphragm-style pressure plate delivers consistent clamping force through the entire rpm range.

      McLeod's patented adapter ring system allows this clutch to work with Ford 164-tooth Modular engine flywheels (4.6L, 5.0L Coyote, 5.4L). The 26-spline hub with 1.125-inch diameter pairs directly with TREMEC T-56 six-speed transmissions. Note that this kit requires a small valley ID flywheel configuration—it will not fit 2011-2017 factory flywheels. For GM LS-X applications, this kit works only with LS1/LS6 flat-style flywheels; recessed LS2/LS3/LS7 flywheels will not work.

      This is a street performance clutch—not designed for competition use where sustained high-heat drag racing or track sessions demand more aggressive friction materials. Proper break-in requires 500-750 miles of stop-and-go city driving to actuate the clutch 1,200 to 1,500 times before any hard use. Made in the USA.

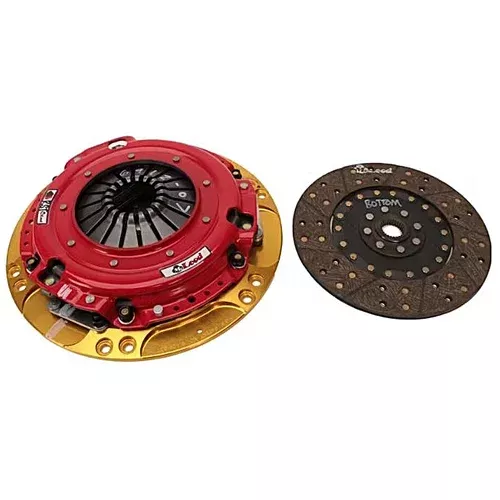

      Kit Includes

      • Diaphragm-style pressure plate
      • Two organic-lined friction discs with sprung hubs
      • Floater plate
      • McLeod patented adapter ring (large gold metric ring)
      • Pilot alignment tool
      • Installation instructions

      Note: Pilot bushing and throwout bearing not included. Flywheel resurfacing and bellhousing alignment check recommended during installation.

      Specifications

      Disk Diameter
      246mm
      Disk Facings
      Organic / Organic
      Disk Single Or Double
      Twin Disk
      Disk Spline and Size
      26 x 1-1/8"
      Hub Type
      Sprung
      Pressure Plate Bolt Pattern
      10.4" Metric, 11" Metric w/Pins, 12-5/8" EQ
      Pressure Plate Type
      Diaphragm
      Torque Rating/HP
      800
      Input spline count
      26

      FAQs

      Q. What are MUST'S' when changing my clutch? A. 1. Change the pilot bearing. 2. Break the clutch in according to the instructions provided. 3. Ensure proper bellhousing alignment. 4. Resurface the flywheel. This is a critical step to guard against clutch chatter/shudder. We recommend a very coarse surface texture from a stone grinder. Something that if you ran your fingernail across the flywheel, the texture would catch your nail. 5. Inspect the entire clutch system, including hydraulics and linkage. Replacement of the Hydraulic slave with an OEM replacement is critical. Q. Do I have to use alignment pins in the flywheel? A. Yes. The pins help to ensure proper alignment of the pressure plate and add strength. Q. What is the proper break-in period? A. We would like to see 500-750 miles of stop-and-go city driving. Absolutely no drag racing or dyno tuning. Make sure to drive in stop-and-go city driving to actuate the clutch 1200 to 1500 times. You can drive the car 600 miles on the interstate and only shift the car 5 or 6 times and fail to break-in the clutch. Q. What causes clutch chatter? A. 1. Oil or grease on the clutch facings. 2. Worn or damaged clutch linkage, leaf springs, bushings, mounts, u-joints, CV joints, engine mounts, transmission mounts. 3. A flywheel that has not been resurfaced properly, has hot spots, has excessive run-out and or incorrect flywheel step. 4. Pressure plate or disc that is bent. 5. Defective pressure plate and or disc. 6. An engine that is not tuned properly. 7. A disc that either lacks enough marcel or has no marcel at all.
