    T5/C4/3550 28-Spline Tail Shaft Bushing & Seal Kit

    Thumbnail Filmstrip of T5/C4/3550 28-Spline Tail Shaft Bushing & Seal Kit Images

      Purchase T5/C4/3550 28-Spline Tail Shaft Bushing & Seal Kit

      Tremec

      T5/C4/3550 28-Spline Tail Shaft Bushing & Seal Kit

      SKU: MD-505-1032-A

      ★★★★★ ★★★★★ 2 Reviews

      $23.00 Original Price
      Price excludes tax


      Join Waitlist

      Sign up with your email to be notified when this is back in stock!


      T5/TR3550/C4/toploader Tailshaft Seal

      Fits:

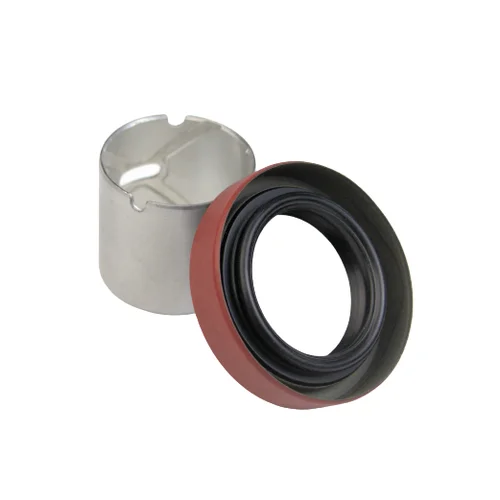

      Ford T5 TR3550 / C4 / Toploader or any transmission that has a 28-spline slip yoke with a 1.5in. OD sleeve Kit contains Tail housing Seal # 8850Xand bushing # MD-505-1032

      Features:
      • The Bushing has a slot in the to promote oiling,
      Note: When pressing the bushing into the tail stock ensure the slot aligns with the oiling valley in the tail stock housing.
      The proper depth of the bushing can be determined when the bushing sits flush with the tailstock recess in which it is fitted.
      ( See the photo below. )



      We do not recommend tapping or driving the bushing into place, as it may deform the bushing. Bushing requires the tail stock housing to be removed or special tooling to pull and install.

      Specifications

      Ford Shortened Input Shaft
      No
      Transmission
      T5

      Ratings and Reviews

      Currently Viewing Reviews with a rating of 5. Click here to reset.
      ★★★★★ ★★★★★
      5/5 Stars out of 2 Reviews
      Write a Review
      5 ★
      2
      4 ★
      0
      3 ★
      0
      2 ★
      0
      1 ★
      0
      Works great for a C4! ( Verified Buyer )
      ★★★★★ ★★★★★
      Nikolas Bergeron (Payette, Idaho) | June 10th, 2025
      Had to get the part fast to get the car driving for a car show. Ordered and picked up same day! No part store had the things I needed but them. Glad they are nearby.
      Worked perfectly! ( Verified Buyer )
      ★★★★★ ★★★★★
      Jake | January 21st, 2025
      Thought my output shaft was twisted since my slip yoke only went into my 3550 about 3/4". After pulling the tail shaft housing off I realized the bushing was shot, score marks all over etc. Knocked out the old one with a bearing press tool and hammer, and installed the new one with the tail shaft housing on a hydraulic press. Easy process, but be sure to line up the hole with the drain line, and make sure the bushing is straight. The fit was perfect, a little loose on the slip yoke before install, but ended up being perfect after install since it compressed very slightly. Seal was installed the same way and seems great. Overall super happy, would definitely recommend.
