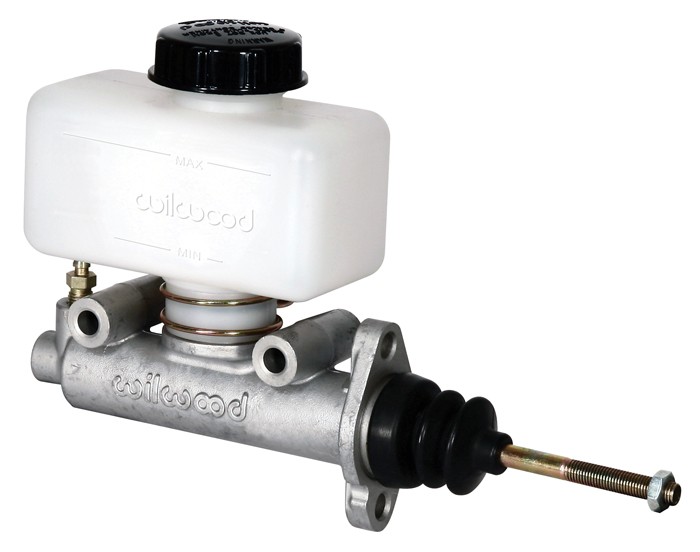

Wilwood Combination Remote Master Cylinder - Product Summary13/16" bore X 1.3" stroke
Combination Remote Master Cylinders offer six different bore sizes and four different installation configurations that are available with this master cylinder kit. Precision machined from high strength aluminum.this kit includes both small and large size reservoirs which can be mounted directly on the master cylinder or remotely mounted for more convenient service access. Standard mounting bolt hole configurations provide easy applications for racing and off-road vehicles, specialty cars, recreation, and industrial vehicles.
Combination Remote Master Cylinders offer six different bore sizes and four different installation configurations that are available with this master cylinder kit. Precision machined from high strength aluminum.this kit includes both small and large size reservoirs which can be mounted directly on the master cylinder or remotely mounted for more convenient service access. Standard mounting bolt hole configurations provide easy applications for racing and off-road vehicles, specialty cars, recreation, and industrial vehicles.

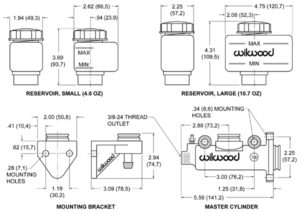

| Dimensions | |
|---|---|
| Overall Length(in) | 9.87" |
| Flange to End Length (in) | 5.56" |
| Inlet Size (in) | 1.35" |
| Inlet Fit (in) | 3/8" Hose |
| Outlet Size 1 (in) | 3/8-24 |
| Outlet Fit 1 (in) | 3/8-24 IF Female |
