Drive Shaft Build Sheet Form
Drive Shaft Build Sheet Form
Download PDF of Build Sheet Here
Order Number *
Fill out this field with your Order ID after you've placed your order
Full Name *
Phone Number * - Use "+" for Non-US Formatting
Your Email Address *

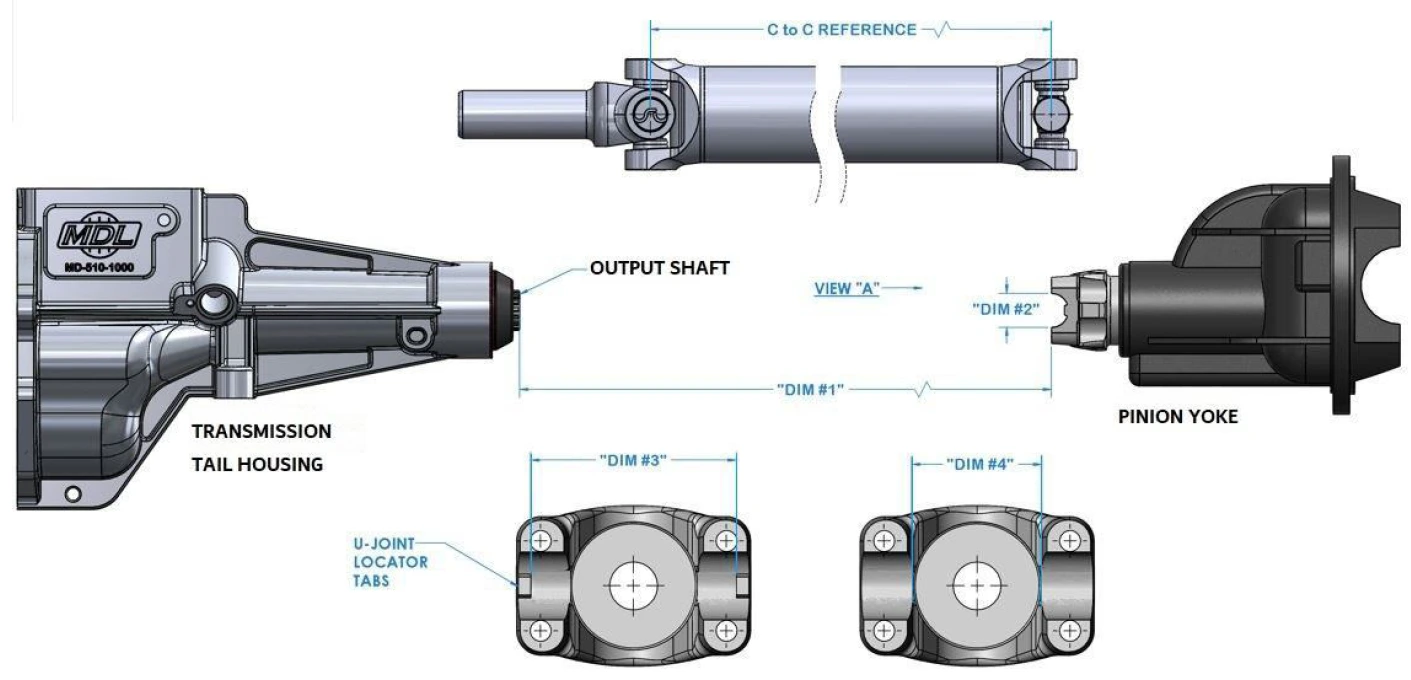

DIM #1: Output shaft of transmission to pinion yoke face *
DIM #2: Cap size of the rear U-join (pinion yoke U-joint saddle) *
1"
1-1/16"
1-1/8"
1-3/16"
DIM #3: Distance between U-Joint locator tabs *
3-1/4"
3-5/8"
DIM #4: If no locator tabs, inside distance between U-Joint saddle *
1-11/16"
2-1/8"
2-9/16"
2-5/8"
Count the number of splines on the trans output shaft
27
28
31
32
Other (please fill out the field below)
Other spine count:
Shaft material you wish to purchase:
DOM Steel ( Stock & Racing )
6061 T-6 ALUMINUM ( Street Rod & Racing )
Tube Diameter:
3"
3.5"
4"
5"
What type of transmission are you using?
