Key Features
- Diaphragm pressure plate with 3-1/8" bolt spacing for Ford 10" long pattern flywheels
- Double-riveted organic facings on both sides for smooth engagement and extended service life
- Fully sprung hub with marcel spring for vibration dampening and precise clutch control
- 10-spline 1-1/16" hub fits 3-speed, 4-speed, and T5 transmissions with mechanical release
- 250 ft-lb torque capacity--ideal for stock and mildly modified street builds
- Complete kit includes mechanical throw-out bearing, pilot bushing, and alignment tool
- Hand-built in-house at MDL with double-checked tolerances before shipping
- Performance Proven design tested on and off track
- Made in the USA with 1-year defect-free warranty
Description
If you're running a Ford 289 or 302 with the original 10" long pattern flywheel, finding a quality clutch kit that actually fits can be a headache. This Superior clutch assembly is engineered specifically for that application--a true bolt-on upgrade for 3-speed, 4-speed, and T5 conversions using mechanical clutch actuation.
The diaphragm pressure plate uses 3-1/8" bolt spacing with 5/16" pressure plate bolts, matching the factory Ford 10" long pattern exactly. The clutch disk features true full organic facings that are double-riveted on both sides, delivering smooth engagement, predictable pedal feel, and the durability street cruisers demand. With a 250 ft-lb torque rating, this kit handles stock and mildly modified small-block Ford combinations without complaint.
The carrier assembly incorporates a fully sprung hub for drivetrain dampening, plus a marcel spring that ensures positive clutch release and full pedal control. The 10-spline 1-1/16" hub mates directly to factory Ford manual transmissions and T5 input shafts equipped for mechanical release systems.
Every Superior clutch disk is hand-built in MDL's facility, where each component is checked and double-checked for accuracy before packaging. This isn't mass-produced overseas inventory--it's a ready-to-install premium piece backed by MDL's lifetime tech support and a 1-year free-from-defect warranty. Made in the USA.

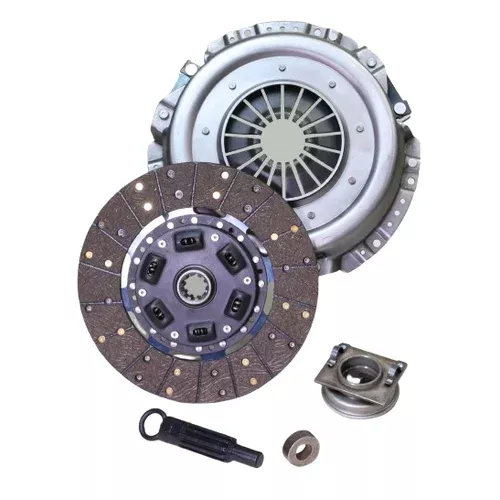

Kit Includes
- Diaphragm pressure plate with 3-1/8" bolt spacing
- 10" organic-faced clutch disk with 10-spline 1-1/16" hub (fully sprung with marcel spring)
- Mechanical throw-out bearing
- Pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- Lifetime technical support
