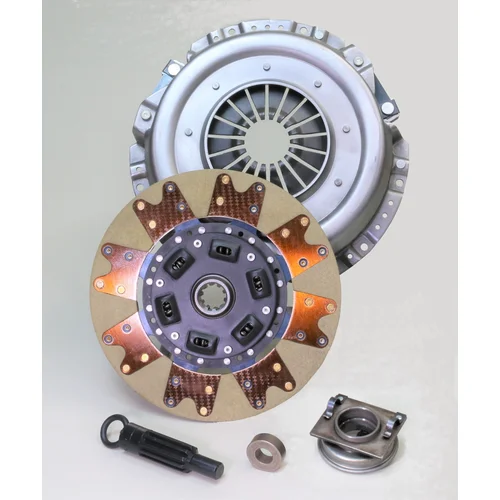

Superior 10in. Long Clutch Set with Kevlar/Bronze facings for Mechanical fork releaseWith 10-spline 1-1/16in. Comes with a Mechanical profile Throw-out bearing, pilot bushing & alignment tool. Perfect for those using the stock 289/302 10in. long pattern flywheels looking for high-performance street strip performance. Diaphragm pressure plate with 3-1/8in. spacing using 5/16in. pressure plate boltsthe clutch disk has a true full Kevlar facing on the pressure plate side for smooth engagement for superior drivability and twice the service life of a stock Organic facing.Bronze facing on the flywheel side to provide more grip at the track. Carrier has a fully sprung hub for dampening and a marcel spring for full clutch controlFord 10 spline 1-1/16in. hubMechanical Throw-out bearing, pilot bushing & alignment tool. Superior brand Precision clutches are manufactured with absolute care, using the finest components available.All are hand-assembled in-house & double riveted to maintain Quality and flawless operation before they are shipped.MDL produces our clutches with exacting standards and pride to deliver a ready-to-install premium product you can be confident in, right out of the boxBacked by a 1-year 'free from defect warranty'.
A little info on ceramic & metallic friction surface applications. Ceramic or bronze friction material is for higher horsepower applications, quicker shifts wanted in road racing, and hard-hitting bite for launching for drag racing. The other application for these surfaces is when going to a larger diameter clutch and/or heavier pressure plate is not an option. Ceramics and semi-metallics have a higher 'coefficient of friction than the other materials MDL offers, so it bites harder and holds more power, given the same clamping force. These surfaces are desired in racing applications for how quickly they engage, as well as for handling extreme heat and abuse. MDL ceramics have iron pieces in them that create more friction as the material gets hotter. For more street-oriented applications, we would use ceramics when we need higher holding power but can't fit a larger diameter disk (more surface area = more holding power). If you cant go to a pressure plate with a higher clamp load, then Ceramic metallic surfaces is a good way to go. As an example, smaller engines make good power but are limited to sub 10in. disk size.The 3 attributes that determine the torque rating of a clutch are:
A little info on ceramic & metallic friction surface applications. Ceramic or bronze friction material is for higher horsepower applications, quicker shifts wanted in road racing, and hard-hitting bite for launching for drag racing. The other application for these surfaces is when going to a larger diameter clutch and/or heavier pressure plate is not an option. Ceramics and semi-metallics have a higher 'coefficient of friction than the other materials MDL offers, so it bites harder and holds more power, given the same clamping force. These surfaces are desired in racing applications for how quickly they engage, as well as for handling extreme heat and abuse. MDL ceramics have iron pieces in them that create more friction as the material gets hotter. For more street-oriented applications, we would use ceramics when we need higher holding power but can't fit a larger diameter disk (more surface area = more holding power). If you cant go to a pressure plate with a higher clamp load, then Ceramic metallic surfaces is a good way to go. As an example, smaller engines make good power but are limited to sub 10in. disk size.The 3 attributes that determine the torque rating of a clutch are:
- Surface area (disk size)
- Coefficient of friction (Kevlar, organic, ceramic)
- Clamping force of the pressure plate. To get higher torque handling ratings, we must increase at least one of those 3.
