Key Features
- Dual Kevlar/Kevlar facings deliver smooth engagement and twice the service life of organic materials
- 26-spline, 1-1/8" hub designed for Tremec TKO/TKX transmissions conversions
- Diaphragm pressure plate with 3-1/8" bolt spacing and 5/16" bolts
- Fully sprung hub with marcel spring for drivetrain protection and precise clutch control
- Cable throw-out bearing included for direct cable actuation systems
- 400 ft-lb torque capacity for performance street and open track use
- Hand-assembled in-house with 1-year defect warranty
Description
Built for enthusiasts upgrading Ford 289/302 small blocks with modern five speed transmissions, this Superior clutch kit solves the classic dilemma of choosing between smooth street manners and track-ready durability. The 10" long pattern pressure plate bolts directly to stock 289/302 flywheels with 157-tooth ring gears, eliminating the need for flywheel changes while delivering serious performance headroom.
The engineering centers on dual Kevlar facings -- full Kevlar on both the pressure plate and flywheel sides -- engineered for exceptional heat dissipation and grip consistency under repeated hard launches. Where organic facings wear quickly under spirited driving, Kevlar construction delivers twice the service life while maintaining the progressive engagement characteristics essential for streetable pedal feel. The 26-spline, 1-1/8" hub configuration matches the input shaft specification on TREMEC TKO-600, TKX, and T-56 Magnum transmissions, making this kit the natural choice for modern 5- and 6-speed swaps.
The fully sprung hub design incorporates dampening technology that absorbs shock loads and protects the drivetrain from the harsh engagement cycles common in performance applications. The marcel spring provides precise modulation across the entire engagement range, giving you full control whether crawling through traffic or launching hard at the track. The diaphragm pressure plate delivers consistent clamp load with a pedal feel that remains streetable despite the 400 ft-lb torque capacity.
Every MDL Superior clutch is hand-assembled and quality-checked in-house before shipping, ensuring precision fit and flawless operation right out of the box. Made in the USA and backed by a 1-year defect warranty.

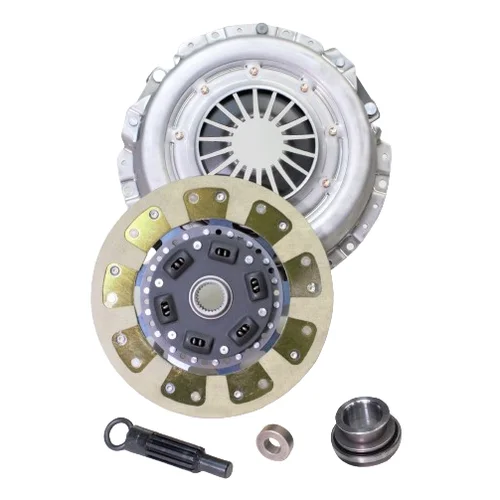

Kit Includes
- Diaphragm pressure plate with 3-1/8" bolt spacing and 5/16" bolts
- Kevlar/Kevlar clutch disc with 26-spline, 1-1/8" hub and fully sprung design
- Cable throw-out bearing
- Bronze pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
