Key Features
- 350 lb-ft torque capacity diaphragm pressure plate
- Dual-face clutch disc: Kevlar facing on pressure plate side, steel-backed organic on flywheel side
- 3-1/8" pressure plate bolt spacing with 5/16"-18 bolts for Ford 10" Long pattern flywheels
- 26-spline x 1-1/8" hub for TKX, TKO, and T56 transmission conversions
- Sprung hub with marcel spring dampening for smooth, controllable engagement
- Designed for cable release systems
- Hand-assembled in-house with dual quality control inspection
- Performance Proven tested for racing applications
- 1-year defect-free warranty
- Made in the USA
Description
Converting a classic Ford small block to a modern overdrive transmission while keeping your stock 289/302 flywheel? This Superior 10" Long pattern clutch kit solves the spline-count mismatch between vintage Ford flywheels and 26-spline transmissions like the TREMEC TKX, TKO, and T56. Rated at 350 lb-ft torque capacity, it delivers the holding power needed for high-performance street applications while maintaining smooth, predictable engagement.
The dual-face disc design is what sets this clutch apart. The pressure plate side features a true full Kevlar facing that delivers smooth engagement, superior drivability, and twice the service life of stock organic facings. The flywheel side uses steel-backed organic facing for stability at high RPM. This combination gives you daily-driver manners with the durability needed when you put your foot in it.
The carrier features a fully sprung hub with marcel spring dampening that absorbs driveline shock while maintaining precise clutch control. The diaphragm pressure plate uses the correct 3-1/8" bolt spacing with 5/16"-18 bolts for Ford 10" Long pattern flywheels. Designed for cable release systems, this kit works with Fox-body style bellhousings and cable forks commonly used in TKO and TKX conversions.
Every Superior clutch disc is hand-assembled in MDL's facility and double-checked for accuracy before shipping. The result is a ready-to-install kit backed by a 1-year defect-free warranty. Made in the USA.

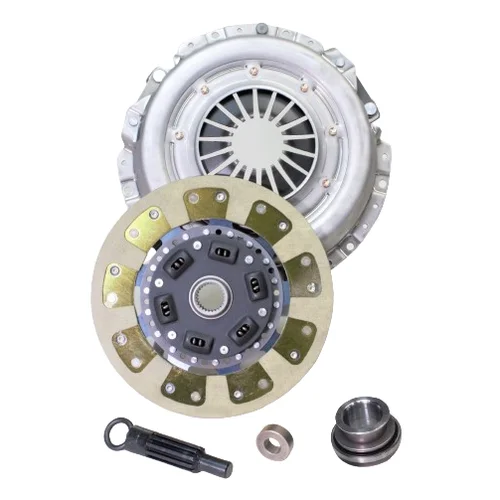

Kit Includes
- Diaphragm pressure plate with 3-1/8" bolt spacing (350 lb-ft rated)
- 26-spline x 1-1/8" clutch disc with dual-face Kevlar/steel-backed organic facings
- Mechanical throw-out bearing
- Pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- Lifetime technical support
