Key Features
- Hand-assembled in-house with double-checked tolerances before shipping
- Full Kevlar/Kevlar disc facings for aggressive bite and extended service life
- 10.4" metric bolt pattern with 8mm pressure plate bolts and alignment dowels
- 10-spline x 1-1/16" sprung hub fits Ford T-5, 3550, TKO, and TKX transmissions
- Dual-compatible throw-out bearing works with both cable and hydraulic actuation systems
- Diaphragm-style pressure plate for consistent pedal feel
- Rated for 500 lb-ft torque capacity
- 1-year free-from-defect warranty
Description
Finding a quality clutch kit for Ford's 10.4" metric bolt pattern that actually meets the tolerances a performance build demands isn't easy. Mass-produced clutches cut corners on QC, leaving you to discover runout or engagement problems after the bellhousing is bolted up. The MDL Superior clutch line eliminates that gamble -- every disc is hand-assembled at MDL's Idaho facility and double-checked for accuracy before it ships.
This kit uses full Kevlar facings on both the flywheel and pressure plate sides of the disc. Kevlar delivers aggressive initial bite without the chatter and harsh engagement of ceramic compounds, making it ideal for performance street and open-track applications where you still want a streetable pedal. The sprung hub absorbs drivetrain shock loads and dampens harmonics that solid hubs transmit straight to the transmission.
The 10-spline x 1-1/16" hub matches factory Ford T-5, 3550, TKO, and TKX input shafts. The included throw-out bearing features a cable profile that also works with hydraulic actuation systems -- critical flexibility when you're upgrading from a factory cable setup or running a hydro conversion. The metric pressure plate bolts up with 8mm fasteners and alignment dowels to Ford 5.0L HO flywheels from '86-'95 applications.
Performance Proven means this clutch has survived the rigorous demands of racing on and off the track. Made in the USA and backed by a 1-year free-from-defect warranty.

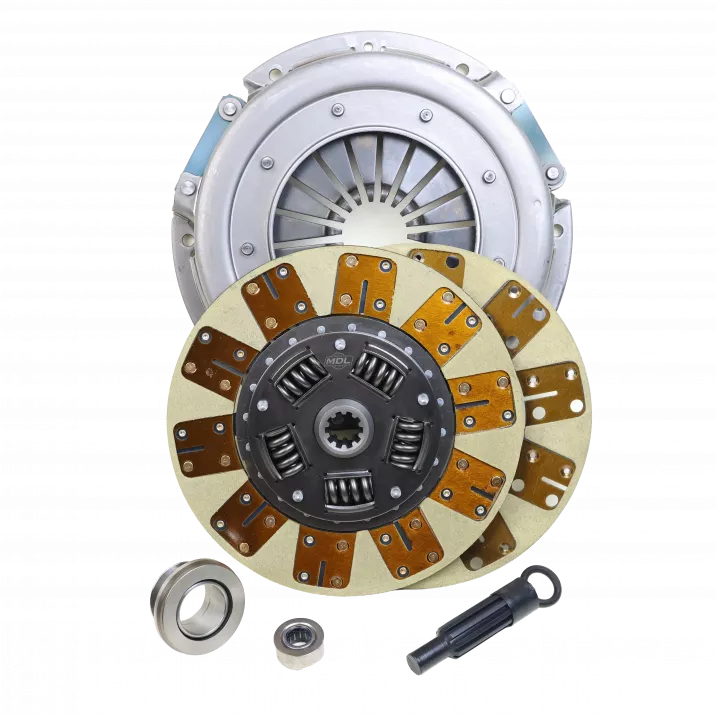

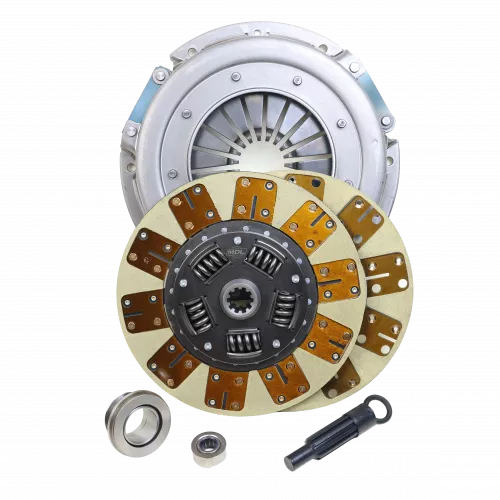

Kit Includes
- 10.4" diaphragm pressure plate with metric bolt pattern
- Kevlar/Kevlar faced clutch disc with 10-spline x 1-1/16" sprung hub
- Cable/hydraulic compatible throw-out bearing
- Pilot bearing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
