Key Features
- 450 ft-lbs torque capacity - tested and proven in street performance applications
- Dual-sided friction materials - Kevlar facing on pressure plate side, steel-backed organic on flywheel side
- 10.5" diaphragm-style pressure plate with 11-5/8" bolt pattern
- 26-spline, 1-1/8" input shaft - compatible with TREMEC TKX, TKO, and T5 transmissions
- Sprung hub design - dampens driveline shock for smoother engagement
- Hand-assembled in-house - double-checked for accuracy before shipping
- Performance Street Plus rated - ideal for moderate performance builds
- Includes pilot bushings for Chevrolet and BOP applications
- 1-year free-from-defect warranty
- Made in the USA - proudly crafted in Caldwell, Idaho
Description
The MDL Superior 10.5" clutch assembly solves the problem of inadequate torque capacity in classic GM performance builds without sacrificing street drivability. This is not just another clutch kit - it is a precision-engineered upgrade that delivers 450 ft-lbs of proven torque capacity while maintaining smooth engagement characteristics for daily driving and spirited weekend runs.
The dual-faced disc design puts the science of friction materials to work. The Kevlar facing on the pressure plate side delivers aggressive bite and exceptional heat resistance under load, while the steel-backed organic material on the flywheel side provides smooth engagement and consistent pedal feel. This hybrid approach gives you the holding power needed for performance applications without the harsh on/off engagement of full race clutches that make stop-and-go traffic miserable.
Every Superior clutch assembly is hand-assembled and quality-checked at MDL's facility in Idaho before it leaves the shop. The diaphragm pressure plate features an 11-5/8" bolt pattern for proper GM applications, and the 26-spline disc is engineered specifically for TREMEC manual transmission swaps including the TKX, TKO, and T5. The sprung hub design dampens driveline shock to protect both the transmission and provide a more refined driving experience.
This clutch assembly is designed for GM applications requiring mechanical actuation with 26-spline input shafts. Compatible with classic Chevrolet small and big blocks, as well as Buick, Olds, and Pontiac engines when used with the included BOP pilot bushing. Perfect for street performance builds, mild strip use, and TREMEC conversion projects where reliability matters as much as performance.

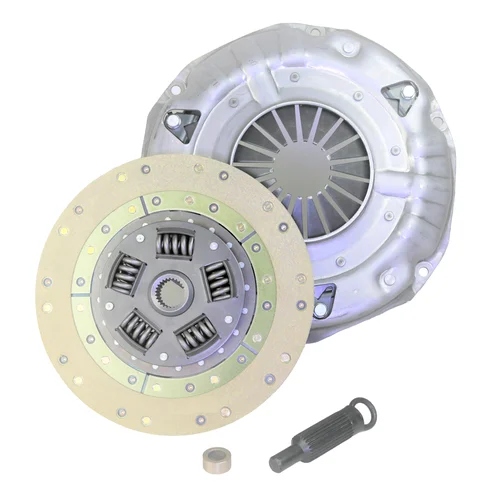

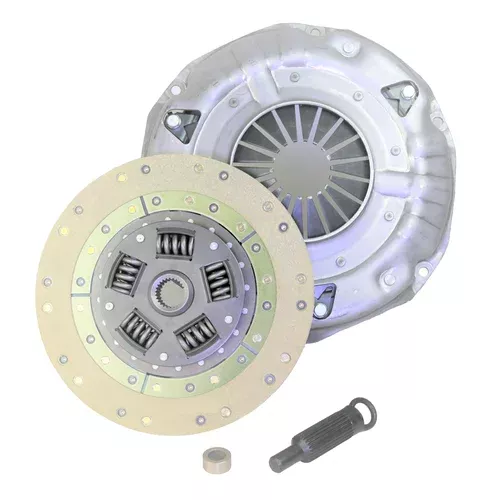

Kit Includes
- 10.5" diaphragm pressure plate with 11-5/8" bolt pattern
- 26-spline, 1-1/8" clutch disc with Kevlar/steel-backed organic facings and sprung hub
- GM mechanical throw-out bearing
- Chevrolet pilot bushing
- BOP pilot bushing
- Clutch alignment tool
- 1-year free-from-defect warranty
- Lifetime technical support
