Key Features
- Steel-backed organic facings for smooth engagement and superior street drivability
- 10mm nodular diaphragm pressure plate with 3-1/8" hole spacing and 5/16" bolts
- Fully sprung hub with marcel spring for dampening and progressive clutch control
- Compatible with cable or hydraulic release systems - includes cable throw-out bearing
- 10-spline 1-1/16" Ford hub sized for TREMEC T5 conversions
- Hand-assembled and double-checked in Caldwell, Idaho before shipping
- Made in the USA with 1-year free-from-defect warranty
Description
When you're converting to a TREMEC T5 behind a 1996-2004 Ford Modular motor, you need a clutch that delivers smooth engagement without sacrificing holding power. The Superior 11" clutch assembly solves the unique challenges of pairing T5 transmission technology with Ford's 4.6L, 5.0L, and 5.4L Modular engines - delivering street-friendly performance that works whether you're running cable or hydraulic actuation.
The engineering starts with steel-backed organic facings that provide the smooth engagement characteristics essential for daily driving while offering the durability demanded by performance applications. The 10mm nodular diaphragm pressure plate uses the Ford-specific 3-1/8" hole spacing with 5/16" pressure plate bolts, ensuring proper fitment to your existing flywheel. The fully sprung hub design incorporates a marcel spring system that dampens driveline shock and provides the progressive engagement feel that separates quality clutches from budget alternatives.
This clutch handles the torque characteristics of Ford Modular engines - from stock applications up to street performance builds. The 10-spline 1-1/16" hub configuration matches TREMEC T5 input shaft specifications, while the included cable throw-out bearing, pilot bushing, and alignment tool ensure a complete, ready-to-install package. Every Superior clutch is hand-assembled and double-checked at MDL's facility in Caldwell, Idaho, backed by comprehensive installation guides and a 1-year warranty. Made in the USA.

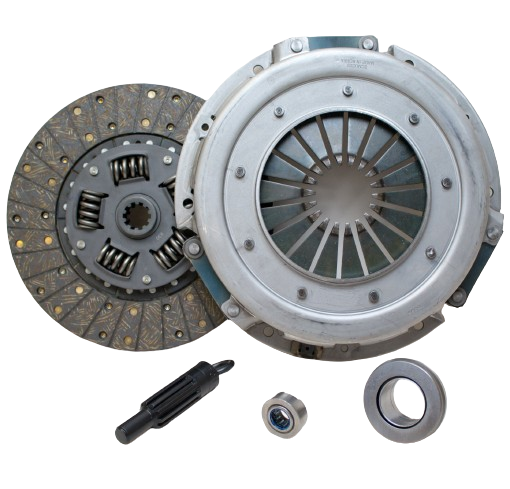

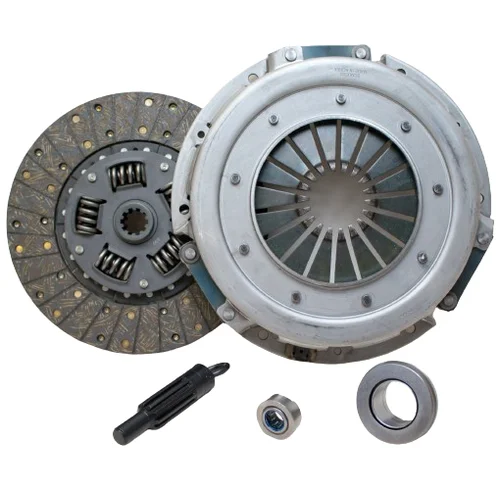

Kit Includes
- 10mm nodular diaphragm pressure plate with 3-1/8" hole spacing
- 11" clutch disc with steel-backed organic facings and fully sprung hub
- Cable throw-out bearing
- Pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
