Key Features
- 450 ft-lb torque rating handles serious street and track power
- Kevlar/Kevlar disc facings deliver aggressive engagement with superior heat resistance
- 11" long pattern (3-3/8" bolt spacing) for Ford 302, 351, and 400M engines
- 26 x 1-1/8" splined hub with sprung center for smooth power transfer
- 3-3/8" diaphragm pressure plate provides consistent clamping force
- Mechanical throwout bearing included - no hydraulic conversion required
- Hand-built in-house with double-checked tolerances for out-of-the-box accuracy
- Performance Proven designation - tested and validated in racing environments
- Made in the USA with 1-year warranty
Description
When your Ford small block needs to hold more power without sacrificing streetability, the MDL Superior Kevlar clutch set delivers proven performance where it counts. Rated at 450 ft-lbs of torque capacity, this complete kit is engineered for Ford 302, 351, and 400M engines running the 11" long pattern bolt configuration - the classic Ford performance setup with 3-3/8" bolt spacing that uses 5/16"-18 pressure plate bolts.
The Kevlar/Kevlar disc construction is what sets this clutch apart from organic alternatives. Both friction surfaces use Kevlar material, which provides aggressive bite characteristics and dramatically improved heat resistance - critical for autocross, road racing, and spirited street driving where repeated high-load engagements would fade an organic disc. The sprung hub design dampens drivetrain vibration while the 26 x 1-1/8" spline pattern matches TREMEC TKO, TKX, and other modern 5-speed transmissions.
Every Superior clutch disc is hand-built at MDL's facility in Caldwell, Idaho - not mass-produced overseas. Each unit is checked and double-checked for accuracy to exacting standards before shipping, ensuring you receive a ready-to-install clutch with no surprises. The 3-3/8" diaphragm pressure plate provides smooth, progressive engagement while delivering the clamping force needed for high-torque applications. The included mechanical throwout bearing works with fork-style clutch actuation systems commonly found in classic Ford bellhousings.
This clutch set does not include a pilot bearing - verify you have the correct pilot bearing for your crankshaft before installation. The Performance Proven logo means this kit has been validated through real-world racing, both on track and off. Made in the USA and backed by a 1-year free-from-defect warranty with lifetime tech support.

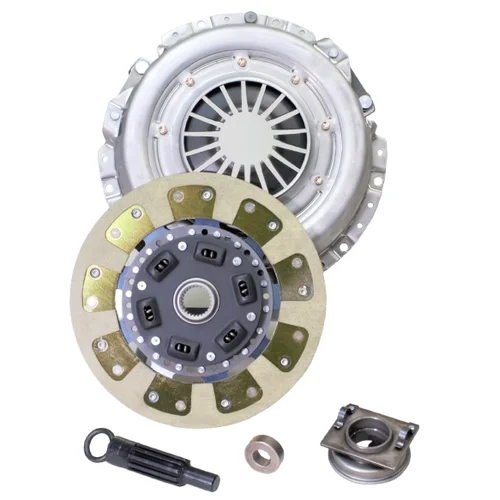

Kit Includes
- 3-3/8" diaphragm pressure plate (5/16"-18 bolt pattern)
- 11" Kevlar/Kevlar clutch disc with 26 x 1-1/8" sprung hub
- Mechanical style throwout bearing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year warranty
- Lifetime tech support
