Key Features
- Complete 11-inch GM clutch set with organic friction facings for smooth, progressive engagement
- 26-spline x 1-1/8-inch input shaft configuration for TREMEC TKX, TKO, and T-56 compatibility
- Diaphragm-style pressure plate with 12-5/8-inch equal bolt pattern and 3/8"-16 hardware
- Low lever height design provides increased bellhousing clearance for concentric slave cylinders
- 350 ft-lb torque capacity sized for street cruisers and mildly modified V8s
- Sprung hub design isolates drivetrain shock and reduces noise transmission
- Hand-assembled and double-checked in-house at MDL in Caldwell, Idaho
- Backed by a 1-year free-from-defect warranty
Description
Running a hydraulic release system in your GM build? Standard pressure plate lever heights can quickly eat into your bellhousing clearance when paired with a concentric slave cylinder. The MDL Superior 11-inch GM clutch set solves that problem with a low lever height pressure plate engineered specifically for hydraulic actuation, giving you the room you need without compromising clamp load or engagement feel.
The organic friction facings deliver the smooth, progressive engagement that makes street driving enjoyable. Unlike aggressive ceramic or metallic facings that grab hard and chatter at low speeds, organic material provides predictable modulation for stop-and-go traffic, parking lot maneuvers, and spirited cruising alike. Rated at 350 ft-lb of torque, this clutch is properly sized for naturally aspirated small blocks and mildly modified V8s where drivability matters as much as capability.
The 26-spline x 1-1/8-inch hub mates directly to TREMEC transmissions including the TKX, TKO, and T-56 Magnum. The 12-5/8-inch equal bolt pattern with 3/8"-16 hardware fits GM 11-inch and 12-inch flywheels. A sprung hub design absorbs torsional shock and dampens gear rattle, translating to a quieter, more refined driving experience. Complete with pilot bushing and alignment tool, this kit arrives ready to install.
Every MDL Superior clutch is hand-assembled in our Caldwell, Idaho facility using the finest available components. Each unit is double-checked for accuracy and quality before shipping, so you receive a ready-to-install premium piece right out of the box. Made in the USA and backed by a 1-year free-from-defect warranty with lifetime technical support.

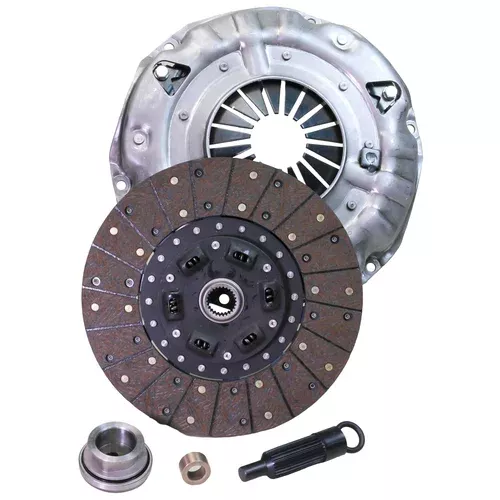

Kit Includes
- Diaphragm-style pressure plate with low lever height for hydraulic actuation
- Organic-faced clutch disc with sprung hub - 11-inch diameter, 26-spline x 1-1/8-inch
- Pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
- Lifetime technical support
