Key Features
- Bronze/bronze facings deliver extreme grip for hard-hitting drag launches
- 650 lb-ft torque rating handles serious horsepower
- Low lever height diaphragm pressure plate increases clearance for hydraulic concentric slave cylinders
- Sprung hub design reduces drivetrain shock and extends input shaft life
- 26-spline x 1-1/8" input shaft fitment for GM applications
- 12-5/8" EQ pressure plate bolt pattern
- Hand-assembled in-house with quality inspection before shipping
- Made in the USA with 1-year warranty
Description
When you need maximum holding power and can't fit a larger diameter clutch or heavier pressure plate, bronze friction material delivers the solution. Bronze facings provide a higher coefficient of friction than organic or Kevlar materials, translating to harder engagement and greater torque capacity from the same clamping force—critical for drag racing launches where every advantage counts.
This Superior Series clutch kit features a diaphragm pressure plate engineered with low lever height geometry, creating additional clearance for hydraulic concentric slave cylinder (CSC) bearings in tight bellhousing applications. The sprung hub design absorbs drivetrain shock loads while distributing stress evenly across the input shaft splines, extending component life even under repeated hard use. Bronze facings actually increase their friction coefficient as they heat up, thanks to embedded iron particles that activate under temperature—exactly what you want when staging at the tree.
Every Superior clutch is hand-assembled at MDL's Idaho facility. Each kit is inspected and double-checked for accuracy before boxing, so you receive a ready-to-install assembly right out of the box. This kit fits GM applications with 26-spline input shafts and 12-5/8" EQ pressure plate bolt patterns, making it ideal for classic muscle car builds, TREMEC transmission swaps, and high-horsepower street/strip machines where maximum grip is non-negotiable.

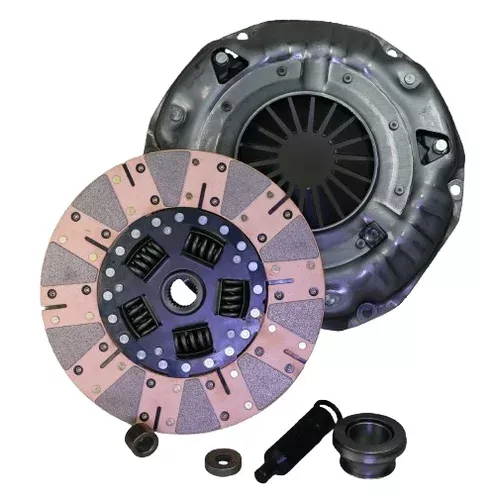

Kit Includes
- Diaphragm pressure plate with 12-5/8" EQ bolt pattern and low lever height
- 11-inch clutch disk with bronze/bronze facings
- Sprung hub with 26-spline x 1-1/8" fitment
- GM pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- Lifetime technical support
