Key Features
- 500 ft-lb torque capacity for performance street-plus applications
- Dual-friction design: Kevlar facing on pressure plate side, steel-backed organic on flywheel side
- 26-spline input, 1-1/8-inch diameter hub
- Low lever height optimized for hydraulic concentric slave cylinder clearance
- 12-5/8-inch EQ bolt pattern fits early GM applications
- Diaphragm-style pressure plate for consistent clamping force
- Sprung hub design absorbs driveline shock and reduces gear rattle
- Hand-assembled and double-checked in-house at MDL
- 1-year warranty against manufacturing defects
- Made in the USA
Description
Hydraulic clutch conversions in early GM muscle cars often run into the same problem: standard clutch assemblies interfere with concentric slave cylinders, forcing builders to compromise on actuation or clearance. The MDL Superior 11-inch Clutch Kit solves this with a specifically engineered low lever height that provides the room needed for clean hydraulic operation without binding or interference.
The dual-friction disc combines Kevlar facing on the pressure plate side with steel-backed organic material on the flywheel side. This pairing delivers smooth, progressive engagement for streetable daily driving while providing the grip to handle 500 ft-lb of torque. The sprung hub absorbs driveline shock loads and dampens gear rattle--critical for performance street builds where drivability matters as much as power capacity. The diaphragm-style pressure plate maintains consistent clamping force across the full range of clutch wear.
Every MDL Superior clutch is hand-assembled in-house in Caldwell, Idaho. Components are double-checked for accuracy and quality before they go in the box, so you receive a ready-to-install kit with no surprises. The 12-5/8-inch EQ bolt pattern fits 1960-1990 Chevrolet, Pontiac, Oldsmobile, and Buick applications. Backed by a 1-year warranty against manufacturing defects and MDL's lifetime technical support.

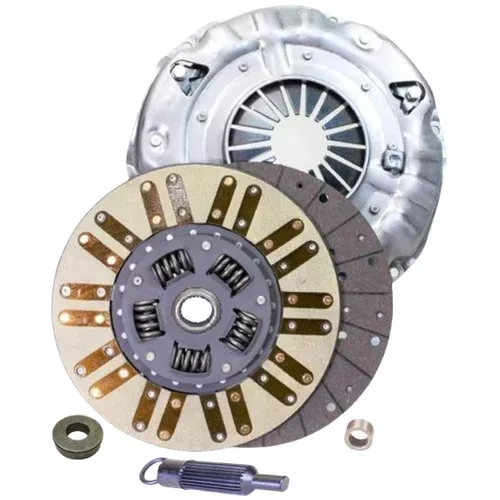

Kit Includes
- Diaphragm-style pressure plate with low lever height for hydraulic CSC clearance
- Dual-friction clutch disc with Kevlar/steel-backed organic facings and sprung hub
- Pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year warranty against manufacturing defects
- Lifetime technical support
