Key Features
- 650 lb-ft torque capacity - built for aggressive street and drag strip use
- Kevlar/metal dual-facing design - Kevlar on flywheel side for smooth engagement, metal on pressure plate side for maximum holding power
- 26-spline x 1-1/8" hub - direct fit for GM LS T56 transmissions
- Diaphragm-style pressure plate with LS bolt pattern
- Sprung hub design absorbs driveline shock and reduces gear rattle
- Single-disc configuration maintains OEM-like pedal feel
- Hand-assembled in Caldwell, Idaho with double-checked quality control
- Made in the USA - backed by 1-year free-from-defect warranty
Description
When your LS-powered build demands both daily-driver manners and serious torque capacity, the Superior 11" clutch set delivers both without compromise. Purpose-built for GM LS engines mating to LS T56 transmissions, this clutch bridges the gap between streetable engagement and performance holding power using MDL's proven dual-facing technology.
The engineering starts with the disc's dual-surface design. The flywheel side features Kevlar facing material that provides smooth, chatter-free engagement for comfortable daily driving, while the pressure plate side uses metal facing for aggressive grip under hard acceleration. This combination gives you the civilized pedal feel of a stock clutch with the holding power needed for 650 lb-ft of torque. The sprung hub further enhances drivability by absorbing torsional shock loads that would otherwise stress transmission synchronizers and driveline components.
The diaphragm-style pressure plate maintains consistent clamping force across the full disc surface, and the LS bolt pattern ensures proper alignment with factory and aftermarket flywheels. With a 26-spline x 1-1/8" hub, this clutch provides direct compatibility with GM LS T56 transmissions using hydraulic clutch actuation.
Every Superior clutch set is hand-assembled at MDL's facility in Caldwell, Idaho. Each component is inspected and double-checked for accuracy before it goes in the box - so you receive a ready-to-install, precision-quality piece right out of the packaging. Designed for aggressive street driving and drag racing applications. Made in the USA and backed by MDL's 1-year free-from-defect warranty.

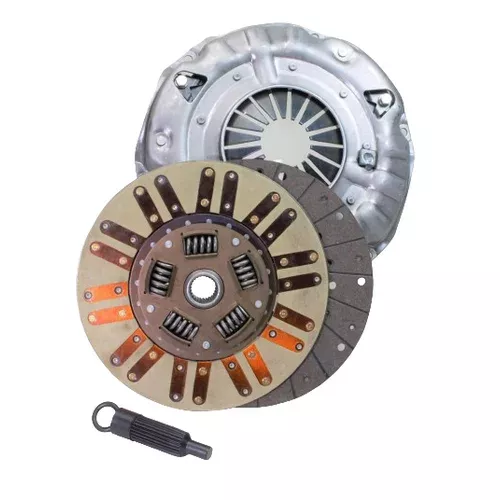

Kit Includes
- 11" Kevlar/metal dual-facing clutch disc with sprung hub (26-spline x 1-1/8")
- Diaphragm pressure plate assembly (LS bolt pattern)
- Pressure plate mounting bolts
- Pilot bearing
- Clutch alignment tool
Note: No throwout bearing included - designed for use with hydraulic slave cylinder systems.
