Key Features
- Hand-built 10-spline, 1-1/16" clutch disk with organic/organic friction facings for smooth street engagement
- 11" long pattern 3-finger pressure plate rated for 300 lb-ft torque capacity
- Pin fork-type MDL cable-style mechanical throw-out bearing for precise actuation
- Sprung hub design absorbs torsional vibrations and reduces drivetrain shock
- Direct fit for Ford Y-Block and Flathead V8 engines using the 11" long clutch pattern
- Changeover fork pins included for bellhousing compatibility
- Performance Proven components tested in racing environments on and off track
- Made in the USA with 1-year warranty and lifetime technical support
Description
Ford's Flathead V8 and the Y-Block that succeeded it share the same 11" long clutch bolt pattern on many applications, making clutch sourcing a headache for restorers, hot rodders, and swap builders alike. This MDL Superior clutch set solves that problem with a complete, ready-to-install package engineered specifically for these classic powerplants. Whether you're rebuilding a '48-'53 Flathead truck, freshening up a '54-'64 Y-Block, or dropping a period-correct mill into a street rod, this kit delivers everything you need in one box.
Every Superior clutch disk is hand-assembled at MDL's Caldwell, Idaho facility using premium organic friction materials on both sides. The dual organic facings provide progressive engagement and excellent modulation for street driving, while the sprung hub design absorbs the torsional spikes that can hammer synchros and stress driveline components. The 10-spline, 1-1/16" input shaft configuration matches original Y-Block and late Flathead transmissions, ensuring drop-in compatibility with your existing gearbox.
The 3-finger pressure plate uses the 11" long bolt pattern with a 3-3/8" register bore, fitting flywheels drilled for this heavy-duty configuration. MDL's pin fork-type mechanical throw-out bearing uses cable-style actuation for reliable, repeatable clutch engagement without hydraulic complexity. Changeover fork pins are supplied to accommodate different bellhousing variants, and the included Flathead pilot bearing centers the input shaft for smooth operation.
Each component undergoes MDL's quality control process with double-checking before shipping, ensuring you receive a ready-to-install clutch set that meets Performance Proven standards. Backed by a 1-year warranty against manufacturing defects and lifetime technical support. Made in the USA.

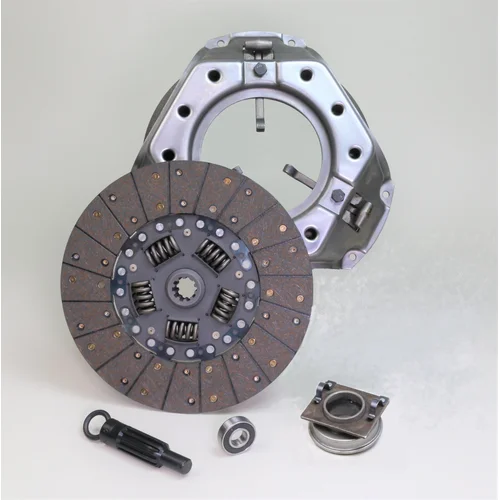

Kit Includes
- 10-spline, 1-1/16" clutch disk with organic/organic friction facings and sprung hub
- 11" long pattern 3-finger pressure plate (3-3/8" register bore)
- Pin fork-type MDL cable-style mechanical throw-out bearing
- Changeover fork pins
- Flathead pilot bearing
- Clutch alignment tool
- 1-year warranty
- Lifetime technical support
