key_features">Key Features

Bolt-in installation using factory C2 Corvette frame mounting points - no cutting or welding required
Engineered specifically for factory small block and big block engine mounting locations

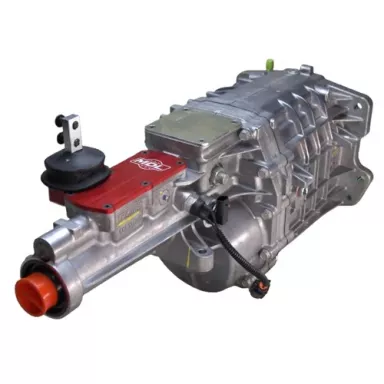

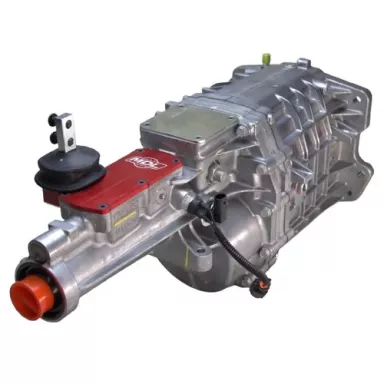

Compatible with TREMEC GM TKO500, TKO600, and TKX 5-speeds (part numbers 17805, 17722, 18083)
Energy Suspension Hyper-Flex polyurethane transmission mount included - outlasts rubber, controls torque, absorbs vibration
TKX shares identical mounting points and overall length with TKO for direct crossmember compatibility
Easy difficulty level - rated as one of the simplest installs in the MDL catalog

Description

The factory C2 Corvette crossmember was designed for 1960s manual transmissions - not modern TREMEC 5-speeds. Swapping to a TKO or TKX means solving the mounting geometry problem, and this crossmember does exactly that. Engineered for '63-'67 Corvettes with small block or big block engines in the factory mounting location, it positions your TREMEC transmission properly while using your original frame attachment points.

Installation is straightforward: the crossmember bolts directly to your existing frame mounts with no fabrication required. If your engine has been set back from the stock position, modifications may be necessary for proper alignment - but for factory-location powerplants, this is a true bolt-in solution. The crossmember is compatible with the full range of GM-pattern TREMEC 5-speeds including the TKO500, TKO600, and the newer TKX (part numbers 17805, 17722, and 18083).

The included Energy Suspension polyurethane mount replaces the weak link that rubber mounts create in a performance drivetrain. Hyper-Flex polyurethane is more durable than rubber, handles higher horsepower applications, and resists degradation from oil, coolant, and road contaminants - all while still absorbing enough vibration for comfortable street driving. The result is controlled torque transfer and proper driveshaft alignment that protects your drivetrain from premature wear.

This crossmember is the right choice for C2 Corvette owners upgrading from factory 4-speeds or adding a modern overdrive 5-speed to their build without resorting to custom fabrication.

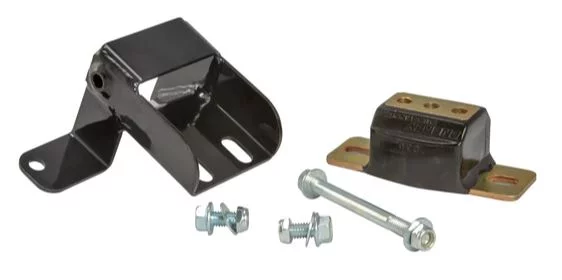

Kit Includes

Steel transmission crossmember
Energy Suspension Hyper-Flex polyurethane transmission mount
Mounting hardware
Installation instructions

Transmission Crossmember | 1963-1967 Corvette | TREMEC TKO/TKX
