Key Features
- Complete mechanical clutch linkage system for 1964-66 Chevelle big block applications
- Big block-specific Z-bar engineered for proper clearance with 396, 427, and 454 engines
- Covers everything from the clutch pedal to the adjustment rod - no additional parts required
- Perfect for restoring original mechanical clutch operation or automatic-to-manual conversions
- Includes all rods, boots, brackets, clips, springs, and hardware for complete installation
- Cross shaft kit and return spring ensure smooth, factory-style pedal operation
- Fork boot protects bellhousing opening from contamination
Description
Converting your automatic Chevelle to a manual transmission - or restoring a 4-speed car with worn-out linkage - means tracking down a dozen individual components that all need to work together. This complete clutch linkage kit eliminates the parts-chasing headache by delivering everything you need in one box, from the clutch pedal connection all the way to the fork adjustment rod.
The big block-specific Z-bar is the heart of this system. Unlike small block Z-bars, this bellcrank is shaped for proper clearance around 396, 427, and 454 engines. It mounts between the engine and frame via ball studs at each end, allowing the smooth rotational movement essential for consistent clutch engagement. The firewall rod connects the pedal to the Z-bar, passing through a boot and retainer assembly that seals the passenger compartment while allowing unrestricted rod travel.
From the Z-bar, the adjustment rod kit extends to the clutch fork, giving you the adjustability needed to dial in proper pedal free-play and clutch engagement. The included return spring provides correct pedal feel and ensures positive clutch release. Three-piece clip kits secure all rod connections, and the cross shaft kit maintains smooth pivot action at critical linkage joints.
This kit fits 1964-66 Chevelle models equipped with big block engines and works with original mechanical clutch setups or automatic-to-manual conversion projects. Please call for current availability: 208-453-9800.

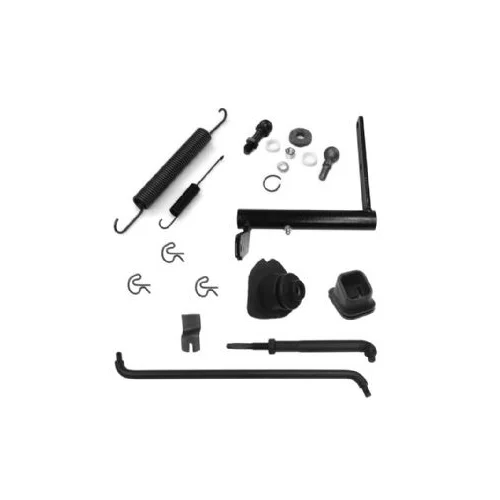

Kit Includes
- (1) Big Block Clutch Z-Bar - shaped for 396/427/454 engine clearance
- (1) Clutch Firewall Rod - connects clutch pedal to Z-bar
- (1) Firewall Rod Boot Retainer - secures boot at firewall
- (1) Firewall Rod Boot - seals rod passage through firewall
- (1) Clutch Rod Clip Kit (3-piece) - secures rod connections
- (1) Clutch Cross Shaft Kit - pivot components for smooth operation
- (1) Clutch Fork Boot - protects bellhousing opening
- (1) Clutch Adjustment Rod Kit - sets pedal free-play and engagement
- (1) Clutch Return Spring - ensures positive pedal return
- (1) Clutch Z-Bar Frame Bracket - secure chassis mounting
