Key Features
- 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
- Close-ratio gearing (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
- 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
- Compact end-loaded aluminum case fits most GM tunnels without floor modifications
- Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
- Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
- ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
- GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
- GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
- Built-in reverse light switch and cruise control safety switch
- Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
- 99 lbs dry weight; 2.7-quart fluid capacity
- High-performance short-throw billet aluminum shifter included
- Front Mount Tall Body Shifter with 1” or 1.5” Backward Offset
- Shifter Stub Location: 13.68” or 14.18” back from the bellhousing face
- MDL Exclusive - not available through TREMEC
Description
Converting your classic GM truck to a modern 5-speed shouldn't mean compromising on shifter position. Stock TREMEC TKX shifter locations often don't work for truck applications - the shifter ends up in the wrong spot relative to the bench seat or console. This MDL-modified TKX solves that problem by relocating the shifter stub to the proper OE position through precision machining and integration of new components, including a custom taller shifter housing designed specifically for trucks.
This is not a bolt-on aftermarket shifter - it's a complete transmission upgrade that requires careful hand-modification at our Caldwell, Idaho facility. Every unit is prepared individually to ensure quality and precision. Many hours of R&D went into developing this modification, and no upgraded TKX leaves here unless it's right. This configuration is exclusive to MDL and is not available directly from TREMEC.
The TKX platform delivers 600 lb-ft of torque capacity with engine speeds up to 8,000 RPM and safe shifts at 7,500 RPM. The ribbed three-piece aluminum housing provides outstanding structural stiffness while keeping the case slim enough to fit most transmission tunnels without modifications. Sintered carbon/bronze hybrid triple-cone synchronizers with a non-leading tooth profile deliver smooth, confident shifts even at high RPM. All gears and shafts are made from special grade steel (ASTM 4615) for increased durability under demanding conditions.
This transmission fits Chevy C10/20 trucks and utilizes the GM TKO bolt pattern with a 7.2-inch length input shaft. Features include a built-in reverse light switch, cruise control safety switch location, Ford mechanical 7-tooth speedometer cable drive gear, 17-tooth reluctor wheel, and two-wire analog OSS speedometer sensor. Tapered roller bearings on the input, output, and countershafts reduce noise, while a caged needle bearing supports the mainshaft. Fluid capacity is 2.7 quarts using Dexron III ATF, Amsoil ATF, TREMEC HP-MTF, or Mobil 1 Synthetic ATF.
Kit Includes

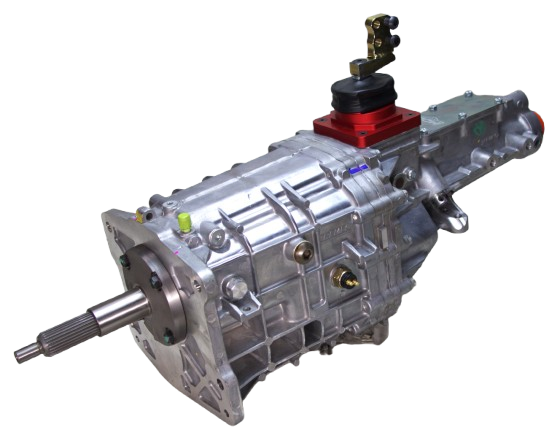

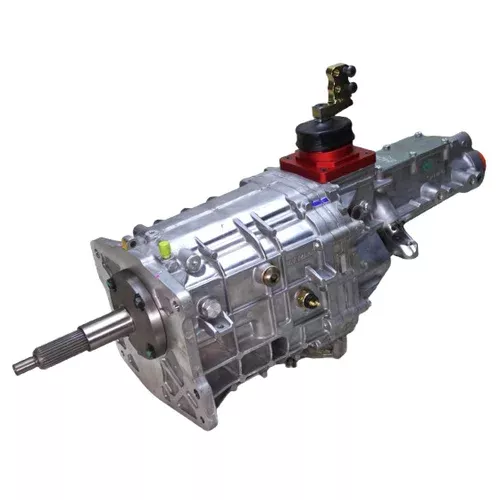

- TREMEC TKX 5-speed transmission (TCET17722) with 2.87/1.89/1.28/1.00/0.81 gear ratios
- High-performance short-throw billet aluminum shifter (front position tall body, 1” or 1.5” Backward offset)
- Stamped-steel rear-position cover
- Gaskets for all mating surfaces
- Built-in reverse light switch (left side)
- Built-in cruise control safety switch (right side)
- Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
- OSS two-wire analog speedometer sensor
- MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
- Lifetime technical support
