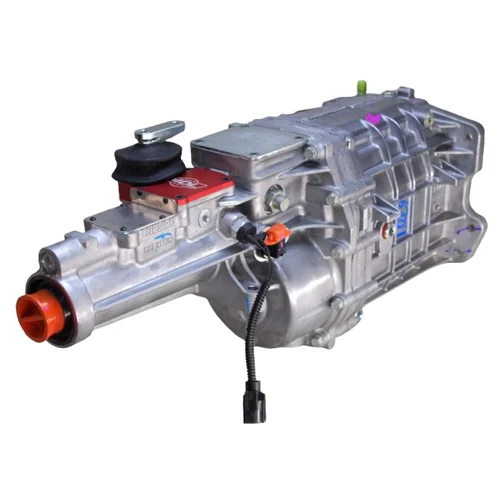

THE MDL MODIFIED SHIFT POSITION TREMEC TKX 5-SPEED FOR TIGERThe shifter is a close-ratio custom made piece that is now an integral part of the transmissionthis is an upgraded transmission, this isnt just a bolted-on shifter.They are all prepared at our facility by hand to ensure quality & precision.Many hours of R&D were put forth to provide this to you our customer.
What do we do to the TKX:MDL modifications bring the shifter stub up in OE position
Application:
1964-1967 Sunbeam Tiger
Order yours now call us for details & availability 208-453-9800
TKX is the next generation in five speeds with such advantages as:
We offer complete TKX five-speed packages That are totally customizable.
Contact us today for a detailed quote.
Experience the MDL difference:
When you purchase a complete MDL Conversion Package you get
TKX offers even more:
For all Tremec TKX 5-Speed models, the recommended oil is Dextron III ATF
Fluid Maintenance LINK for Tremec Transmissions
The shifter is a close-ratio custom made piece that is now an integral part of the transmissionthis is an upgraded transmission, this isnt just a bolted-on shifter.They are all prepared at our facility by hand to ensure quality & precision.Many hours of R&D were put forth to provide this to you our customer.
If you are making over 400-hp and need an update from your four-speed this is the transmission for you.
No upgraded TKX leaves here unless its right.
What do we do to the TKX:
MDL modifications bring the shifter stub up in OE position
We achieve this by carefully machining, updating, and integrating new pieces to this must-have transmission
Not available through TREMEC.
Application:1964-1967 Sunbeam Tiger
Features:
Gear Ratios 2.87, 1.89, 1.28, 1, .68od 26 spline input, 31 spline output
this utilizes the original shifter from your Tiger
Order yours now call us for details & availability 208-453-9800TKX is the next generation in five speeds with such advantages as:
- End Loading Design
- A slimmer case design for greater tunnel clearance
- Increased case strength, and fewer case seams.
Sintered carbon/bronze-Hybrid triple cone synchroswith a non-leading tooth profile
- Slim End loading case designed for superior strength and greater tunnel clearance.
- Sintered carbon/bronze-Hybrid triple cone synchros with a non-leading tooth profile
- Close gear ratio (2.87, 1.89, 1.28, 1.00, .68) high-performance applications Rated at 600+ft/lbs
- Utilizes Ford TKO bolt pattern 7.2? length input shaft...(with the short input shaft option...You can bolt to a Ford close pattern 3-4 speed bellhousing)
- 26-spline input shaft with a 31 spline output shaft for added strength.
- Ford .670 pilot tip and 1.430? OD throwout bearing guild tube.
- Robust design with an internal 3-rail shift system & steel shift forks.
- All gears & shafts are made from special grade steel (ASTM 4615) providing increased torque carrying capacity.
- Single-piece countershaft provides an increased torque carrying capacity
- Tapered roller bearings on input, output, and counter shafts improve performance (reduced noise factor) with caged needle bearing on the main shaft.
- Equipped with a high-performance short-throw billet aluminum shifter that isolates road noise, while providing clean crisp shifts.(Optional offsetMDLshifter available for even more custom fit)
- New smaller mid-position shifter mounting base reduced footprint
- Built-in reverse light switch on the left side
- Cruise control safety switch location on the right side of the TKX.
- Rear main-shaft support bushing moved from the tail closer to the gearbox provides better support.
- All mating surfaces are sealed with gaskets
We offer complete TKX five-speed packages That are totally customizable.
Contact us today for a detailed quote.
Experience the MDL difference:
When you purchase a complete MDL Conversion Package you get
- We extend the manufacturers warranty by an extra year with a 1-year grace period.
- We have the best in the industry customer service.
- life-time technical support.
TKX offers even more:
- Three shifter locations standard. (For the Mid position, additional kit required)
- Ford Mechanical 7 tooth speedometer cable drive-gear
- OSS two-wire Analog speedometer sensor built-in.
- Reduce engine rpm to a level that makes it fun to drive besides enhancing fuel efficiency.
For all Tremec TKX 5-Speed models, the recommended oil is Dextron III ATF
- Tremec High-Performance manual transmission Fluid (HP-MTF)
- Mobil 1 Synthetic ATF.
Fluid Maintenance LINK for Tremec Transmissions
