Key Features
- Complete mechanical clutch linkage system - every component from pedal to clutch fork
- Heat-treated bellcrank assembly (Z-bar) with installed pivot kit and zerk fitting for serviceability
- Technically correct components with factory-style protective finishes
- Includes adjustable lower push rod for precise clutch engagement tuning
- Two bellcrank felts included - one for installation, one for future service
- Assembly diagram included for straightforward installation
- Fits 1967-1969 Camaro and 1968-1972 Nova with small block V8 or inline 6-cylinder engines
Description
Worn clutch linkage on first-gen Camaros and early Novas creates sloppy pedal feel, inconsistent engagement, and eventually complete clutch failure. Original pivot points wear out, clips go missing, rubber components deteriorate, and the whole system develops slop that makes smooth shifting impossible. This complete kit replaces every component in the mechanical clutch linkage path - from the firewall to the clutch fork - restoring factory clutch operation.
The heart of the system is a heat-treated bellcrank assembly (Z-bar) with an integrated pivot kit and zerk fitting. Heat treatment is critical here because the bellcrank is the leverage point where all pedal force transfers to the clutch fork - a soft or improperly treated Z-bar will bend or break under load. The installed grease fitting allows periodic lubrication to keep the pivot smooth and extend service life.
Every component in this kit features correct protective finishes matching original specifications. The adjustable lower push rod allows precise tuning of clutch engagement point and pedal free play. The kit includes both upper and lower push rods, frame-side and block-side mounting hardware, protective rubber boots, return spring, and all necessary clips. Two bellcrank felts are included - one for installation and a spare for future service.
This kit fits 1967-1969 Camaro and 1968-1972 Nova equipped with small block V8 or inline 6-cylinder engines. Please call 208-453-9800 to confirm availability before ordering.

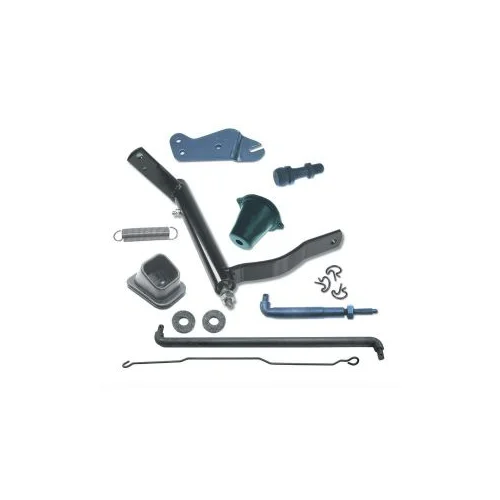

Kit Includes
- 1 Heat-treated bellcrank assembly (Z-bar) with installed pivot kit and zerk fitting
- 1 Upper push rod
- 1 Upper rod boot
- 1 Lower adjustable push rod
- 1 Frame side bracket
- 1 Frame side ball stud with nut and washer
- 1 Block side stud with seal
- 1 Clutch fork to bellhousing rubber boot
- 1 Return spring
- 1 Extension wire
- 3 Rod clips
- 2 Bellcrank felts (only one required)
- Assembly diagram
