Key Features
- Small block-specific Z-bar design -- clears small block exhaust manifolds and oil pressure sending unit location
- Complete system from clutch pedal to adjustment rod -- everything needed for conversion or restoration
- 1967-specific firewall rod length -- engineered for the '67 collapsible steering column geometry
- All hardware included -- Z-bar, cross shaft kit, rods, clips, bracket, springs, and boots
- Original-style mechanical linkage operation -- maintains factory clutch feel and engagement
Description
Whether you're converting your 1967 Chevelle from automatic to manual transmission or restoring worn-out clutch linkage, this complete kit delivers every component needed to get the job done right. The 1967 model year presents unique challenges -- GM introduced a new collapsible steering column mid-year that changed the pedal assembly geometry, requiring specific rod lengths and Z-bar configurations that don't interchange with '66 or earlier hardware.
The included small block Z-bar (clutch bellcrank) is engineered specifically for small block engine applications. Big block 396 engines use a different Z-bar due to exhaust manifold clearance requirements and oil pressure sending unit positioning -- this kit is for small blocks only. The Z-bar provides the mechanical leverage multiplication that transfers pedal input to clutch fork movement through a series of precisely-dimensioned linkage components.
The system works together as a matched set: the firewall rod transfers motion from the clutch pedal through the firewall boot to the Z-bar assembly, the cross shaft kit provides smooth pivot points, and the adjustable rod allows fine-tuning of clutch engagement. The return spring ensures positive pedal action, while the rod clips secure all connections reliably. Both the firewall rod boot and clutch fork boot protect the system from contamination.
Fits 1967 Chevelle with small block engines. Not for big block applications -- those require a different Z-bar configuration.

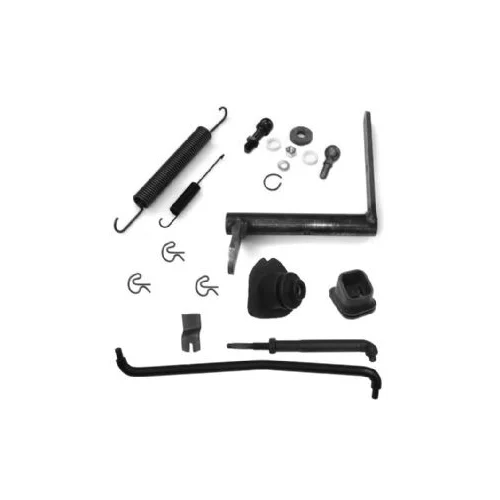

Kit Includes
- (1) Small Block Clutch Z-Bar
- (1) Clutch Firewall Rod
- (1) Firewall Rod Boot
- (1) Clutch Rod Clip Kit (3-piece)
- (1) Clutch Cross Shaft Kit
- (1) Clutch Fork Boot
- (1) Clutch Adjustment Rod Kit
- (1) Clutch Return Spring
- (1) Clutch Z-Bar Frame Bracket
