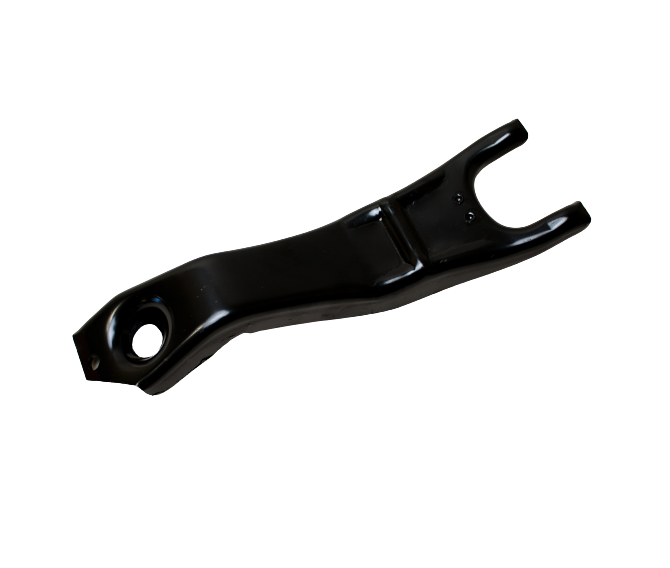

Clutch Fork | 1968-1969 Ford 428 Cobra Jet | Big Bearing TopLoader

Key Features

OEM reproduction based on Ford part number C8OZ-7515-D for authentic fitment
Designed specifically for 1-3/8" x 10 spline input shaft four-speed TopLoaders
12-inch length matches factory specifications for 428 Cobra Jet applications
Correct geometry for big bearing throwout bearings used on 428CJ transmissions
NOT compatible with five or six-speed conversion transmissions

Description

If you're restoring or maintaining a 1968-1969 428 Cobra Jet-equipped Ford, this clutch fork is the correct piece for your big-input TopLoader. The "big bearing" designation refers to the larger input bearing retainer and corresponding throwout bearing used on 428CJ four-speeds--these transmissions run a 1-3/8" x 10 spline input shaft, which requires this specific fork geometry to properly engage the larger-diameter throwout bearing.

The clutch fork is the critical lever between your external clutch linkage (Z-bar and rods) and the throwout bearing inside the bellhousing. This reproduction matches the original C8OZ-7515-D part number and maintains the correct 12-inch overall length and bend angles to deliver proper leverage and release travel. A worn, warped, or incorrect fork causes hard pedal feel and incomplete clutch disengagement--problems that translate directly to grinding gears and premature synchro wear.

This fork is designed exclusively for original-style four-speed TopLoader restorations. If you're doing a five or six-speed conversion (TKO, TKX, T56, etc.), you need the MD-C8OZ-7515-C small bearing fork, which is engineered for modern transmissions with smaller input shaft bearing retainers.

Fits: 1968-1969 Ford Mustang, Fairlane, Torino, and Mercury Cougar and Comet models equipped with 428 Cobra Jet engines and four-speed TopLoader transmissions with the 1-3/8" big input shaft.

Kit Includes

One clutch fork--12-inch length (part number MD-C8OZ-7515-D)
