Key Features
- Complete mechanical clutch linkage system--covers everything from clutch pedal to adjustment rod
- Fits both small block and big block 1968-1972 Chevelle applications
- Includes Z-bar (bellcrank), firewall rod, cross shaft kit, and frame bracket
- All hardware included--boots, clips, return spring, and retainers
- Perfect for restoring worn factory linkage or automatic-to-manual conversions
- Direct mechanical operation with no hydraulic fluid maintenance required
Description
Rebuilding your Chevelle's worn clutch linkage or swapping from automatic to manual? This complete mechanical clutch linkage kit eliminates the hassle of sourcing individual components piece by piece. Everything you need from the firewall to the clutch fork is included--Z-bar, rods, boots, brackets, and all the small hardware that's impossible to find at the local parts store.
The system centers on a properly designed Z-bar (bellcrank) that provides correct leverage ratios for smooth, consistent clutch engagement. The firewall rod assembly includes its boot and retainer to seal out road debris and moisture, while the cross shaft kit ensures the fork moves precisely without slop or binding. A clutch return spring maintains proper fork positioning for predictable pedal feel and complete clutch release.
Mechanical linkage remains the preferred choice for many muscle car enthusiasts who want the authentic, direct feel these cars delivered from the factory. There's no hydraulic fluid to bleed, no seals to eventually leak, and no master or slave cylinder to service--just solid mechanical operation that responds immediately to pedal input. This kit fits all 1968-1972 Chevelle models equipped with either small block or big block engines.

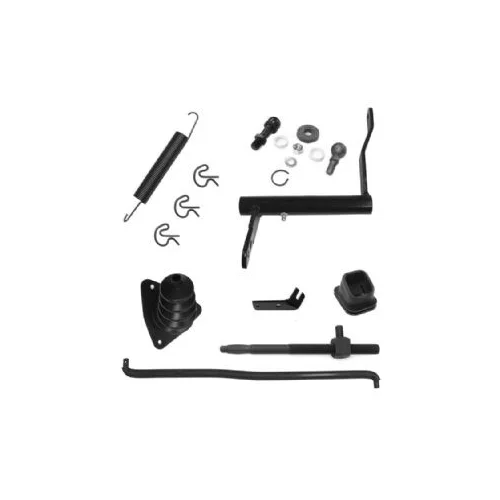

Kit Includes
- (1) Clutch Firewall Rod
- (1) Firewall Rod Boot Retainer
- (1) Firewall Rod Boot
- (1) Clutch Z-Bar (Bellcrank)
- (1) Clutch Rod Clip Kit (3-piece)
- (1) Clutch Cross Shaft Kit
- (1) Clutch Fork Boot
- (1) Clutch Return Spring
- (1) Clutch Adjustment Rod Kit
- (1) Clutch Z-Bar Frame Bracket
