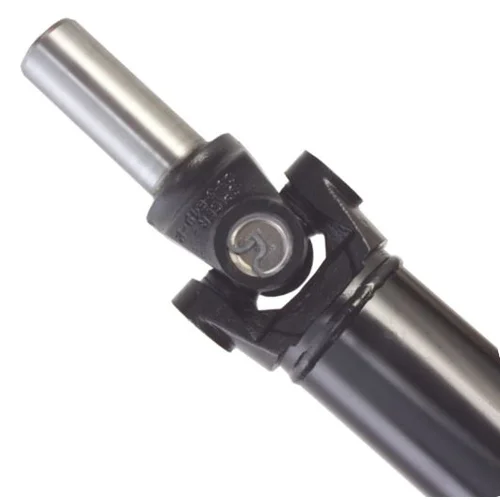

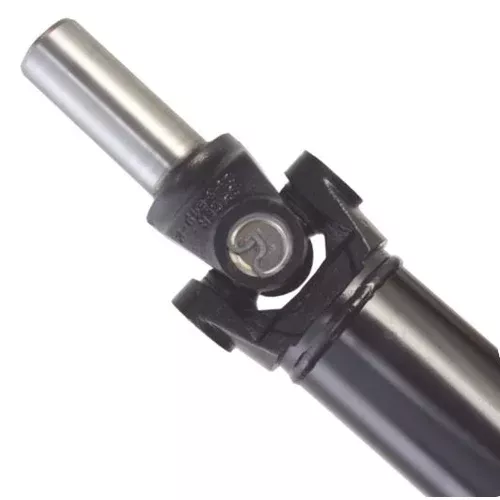

Steel Driveshaft | 1996-2004 Mustang T56 Magnum | 31-Spline | 8.8 Small Flange
Key Features
- DOM seamless 3.0" steel tube - 15% stronger than OEM for demanding T56 Magnum applications
- 31-spline forged steel slip yoke matches T56 Magnum output shaft
- 1330 series U-joints for proven reliability and torque capacity
- 44.3" center-to-center length precision-measured for SN95 Mustang chassis
- Designed for Ford 8.8 small flange rear end (2" center bolt pattern)
- Professional high-speed balancing eliminates vibration
- Black painted finish for corrosion protection
- Custom-built to order - requires driveshaft measurement sheet
- Made in the USA
Description
When you swap a T56 Magnum 6-speed into your SN95 Mustang, your factory driveshaft no longer fits - the Magnum's 31-spline output shaft requires a matching slip yoke, and the transmission's positioning changes your overall driveline length. This custom steel driveshaft solves both problems with a purpose-built assembly designed specifically for 1996-2004 Mustangs running T56 Magnum transmissions.
The driveshaft is built around a DOM seamless 3.0" steel tube that's 15% stronger than OEM construction. DOM (Drawn Over Mandrel) tubing delivers consistent wall thickness and superior concentricity compared to standard welded tubing, which translates to better balance characteristics and increased strength under load. The 31-spline forged steel slip yoke slides directly onto the T56 Magnum's output shaft, while 1330 series U-joints provide the proven torque capacity needed for high-performance street and strip use.
Every driveshaft is professionally high-speed balanced to eliminate the vibration issues that plague improperly built assemblies - critical when you're putting power through a 700 lb-ft-rated transmission. The 44.3" center-to-center measurement is precision-cut for the SN95 chassis, and the rear flange bolts directly to Ford 8.8 small flange rear ends with the 2" center bolt pattern. A black painted finish provides long-term corrosion protection.
This is a custom-built driveshaft - you'll need to submit the MDL driveshaft build sheet with your vehicle measurements to info@moderndriveline.com before your shaft is built. SVT models require individual measurements due to chassis variations. Made in the USA with lifetime technical support.
Kit Includes
- One-piece steel driveshaft assembly - DOM seamless 3.0" tube
- 31-spline forged steel slip yoke
- 1330 series U-joints (front and rear)
- Ford 8.8 small flange pinion yoke (2" center bolt pattern)
- Professional high-speed balancing
- Black painted finish
- Lifetime technical support
