Key Features
- 0.750-inch bore, long-stroke aluminum master cylinder engineered to use full factory pedal swing for maximum leverage

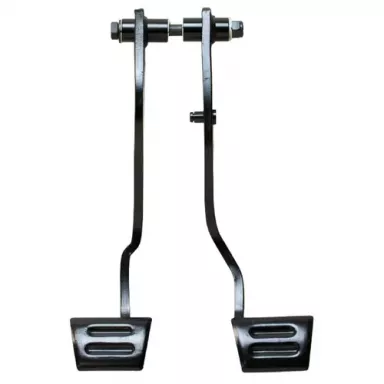

- Uses stock clutch pedal and rod hole for minimal vehicle modification
- Firewall support plate mounts under brake master or booster where the firewall is strongest -- eliminates firewall flex
- OE-quality remote plastic reservoir with no clamps that can leak
- 1.4-inch master cylinder throw distance for proper clutch engagement
- Works with most internal and external slave cylinders
- Reduces pedal load on the pivot shaft
- Includes one-man bleeder kit for easy solo installation
- Made in the USA
Description
Converting your '70-'71 Camaro or Firebird from mechanical linkage to hydraulics used to mean piecing together a kit from scratch -- and often left you frustrated with poor pedal feel or excessive effort. The LF Series Hydraulic Clutch Master Kit solves that problem with an engineered solution that uses your stock clutch pedal while delivering the smooth, consistent actuation only hydraulics can provide.
The engineering centers on a 0.750-inch bore, long-stroke master cylinder paired with an innovative pedal linkage that uses the factory full swing of the pedal for maximum leverage. The result is light pedal effort and full control of the clutch -- a drive you will actually enjoy. Unlike generic master cylinders that bolt directly to the pedal with a short stroke and heavy pressure, the LF Series matches pedal travel to cylinder stroke for proper fluid volume without overloading the firewall or your left leg.

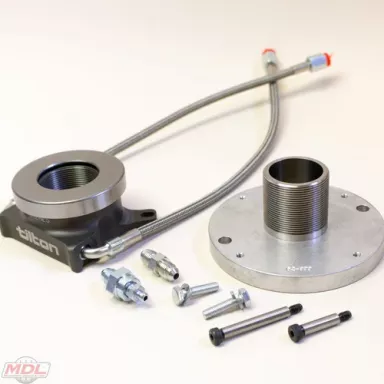

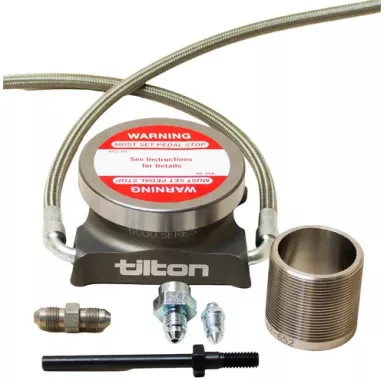

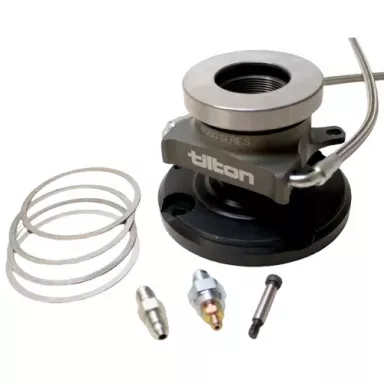

Installation stays straightforward because the kit uses the stock clutch rod hole, requiring very little change to the car. The master cylinder mounts on a firewall plate that goes under the brake master cylinder or booster where the firewall is strongest, eliminating flex and providing a solid, consistent pedal feel. The remote plastic reservoir mounts cleanly on the firewall with no clamps that can leak over time. Pair this kit with a Tilton Engineering internal hydraulic release bearing or an MDL LF Series external slave for a complete hydraulic clutch solution ready to install. Made in the USA.

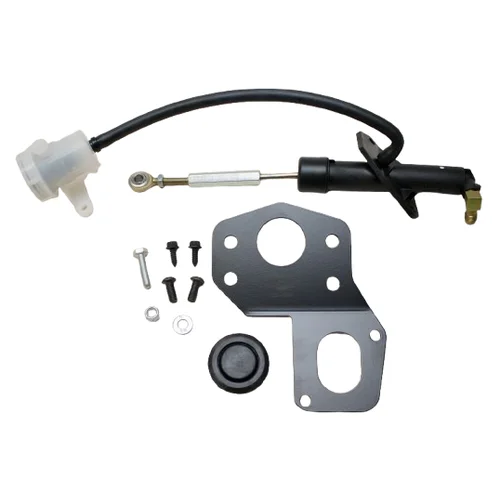

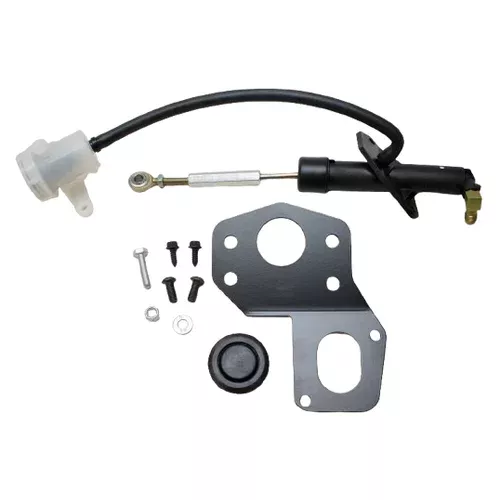

Kit Includes
- Aluminum master cylinder (0.750-inch bore)
- Firewall support plate
- Mechanical linkage assembly
- Black plastic remote reservoir
- Hydraulic lines
- One-man bleeder kit
- Installation instructions
- Lifetime technical support
