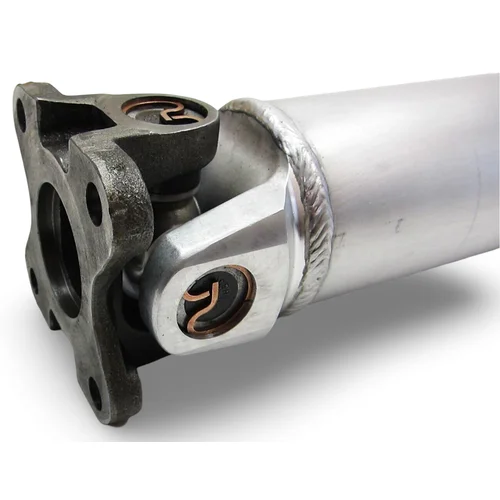

Key Features
- 31-spline forged steel slip yoke matches TKO and TKX output shaft specifications
- 3.0" steel tube construction for torsional rigidity and durability
- 1330 series universal joints (1.062" cap diameter, 3.625" span)
- Ford 8.8" small flange pattern (2.5" x 2.5" bolt spacing) for direct bolt-on fitment
- Application-specific length for 1979-1993 Fox Body Mustang chassis
- High-speed balanced and painted black for vibration-free operation
- Professionally built, custom construction
- Made in the USA
Description
Upgrading your Fox Body Mustang to a TREMEC TKO or TKX transmission means your stock driveshaft no longer fits - the 31-spline output shaft requires a matching slip yoke, and the transmission's overall length differs from the factory T5. This steel driveshaft solves both problems with a purpose-built assembly engineered specifically for the 1979-1993 Mustang chassis when equipped with TKO or TKX 5-speeds and a Ford 8.8" rear end.
The driveshaft centers on a forged steel 31-spline slip yoke that mates directly to the TKO/TKX output shaft - both transmissions share this output spline count as part of their heavy-duty design. The 3.0" steel tube delivers excellent torsional strength without excessive weight, and 1330 series universal joints provide the durability needed for spirited street driving. The rear flange matches the Ford 8.8" small bolt pattern (2.5" x 2.5" spacing), ensuring direct compatibility with most Fox Body rear ends.
Every driveshaft is professionally built to application-specific length for the Fox Body chassis, then high-speed balanced to eliminate vibration throughout the rpm range. The black painted finish provides corrosion protection and a clean appearance under the car. This isn't a universal part requiring modification - it's engineered for the precise centerline-to-centerline distance of your Mustang.
Compatible with all TKO-500, TKO-600, and TKX transmissions due to their shared 31-spline output shaft. Fits 1979-1993 Mustangs with Ford 8.8" rear ends using the small flange pattern. Made in the USA with lifetime technical support included.
Kit Includes
- Steel driveshaft assembly with 3.0" tube, painted black
- Forged steel 31-spline slip yoke
- 1330 series universal joints (front and rear)
- Ford 8.8" small flange yoke
- Lifetime technical support
