Purchase Bellhousing, Aluminum, GM LT1/LS, Lakewood, 168 tooth SB/BB, to GM four speed bolt pattern.

Bellhousing, Aluminum, GM LT1/LS, Lakewood, 168 tooth SB/BB, to GM four speed bolt pattern.

SKU: MD-401-1200-HP

No reviews yet. Write a review!
$400.00 Original Price
Price excludes tax


Join Waitlist

Sign up with your email to be notified when this is back in stock!

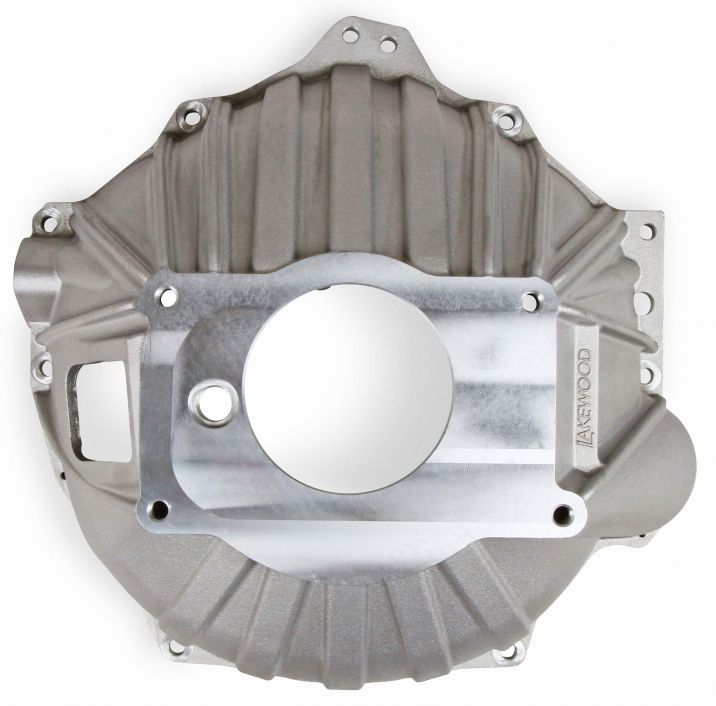

LAKEWOOD ALUMINUM BELLHOUSING


Application:

Tremec TKO and TKX, Muncie, Saginaw, and Borg Warner T10 transmissions ( GM four-speed bolt pattern )to GM LT1/LS as well as small & big-block engines. (Does not come with Fork Pivot)Use for 168T FW & 11' ClutchThis bell does not fit ACE twin disk clutches.This bell has additional casting bumps that may need to be clearanced to fit certain vehicles.
The Lakewood cast aluminum bellhousings connect Chevy small, big block, and LS engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10, and Tremec TKX or TKO transmissions. The bellhousings are designed for both GM cars and trucks and other manufacturers where swap applications are being installed.

Features:
  • Factory-like attachment for LS engines using a stock or Holley oil pan
  • Lightweight cast aluminum design similar to the original equipment bellhousings
  • Lower cost non-SFI rated option for projects that do not require a steel SFI-rated unit
  • Designed For Hydraulic and Mechanical Fork Throwout Bearing Linkage
  • Bellhousing Depth: 6.45 in
  • Clutch Fork Opening: 2.125 In X 3.3 In
  • Transmission Bore Diameter: 4.684 In

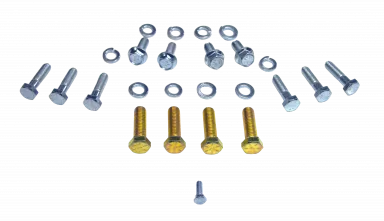

  • No hardware included



EASY DIFFICULTY LEVEL ON THIS INSTALL If you have any questions please call we're always happy to help - 208-453-9800

Specifications

Bell Clutch Release Type
Mechanical, Hydraulic
Bell Engine Model Fitment
Chevy SB/BB
Bell Flywheel Ring Gear Size
168
Bell Material
Aluminum
Bell Transmission Model Fitment (Bolt Pattern)
GM Muncie/TKO/TKX
Transmission
GM Muncie/GM TKO TKX
