Key Features
- 1250 lb-ft torque capacity with solid-hub cerametallic discs for street/strip applications
- 246mm (9.7") twin-disc design engineered from the ground up as a true performance clutch—not a stamped steel cover with a floater added
- Precision-machined aluminum clutch cover shares technology from Tilton's championship-winning OT-Series racing clutches
- Billet chromoly steel flywheel with 153-tooth ring gear and precision register for optimal clutch/flywheel balance
- Floater plate twice the thickness of most competitors—superior heat dissipation, eliminates gear clatter
- Heavy-duty straps attach pressure plate and floater to cover for clean release and minimal noise
- Includes Tilton 6000-Series hydraulic release bearing with height preset for direct connection to OEM clutch line
- 26-spline, 1-1/8" input shaft compatibility
- Made in the USA by Tilton Engineering
Description
When you're pushing serious power through a C6 Corvette, you don't shop clutches by price—you shop by what won't fail. The Tilton ST-246 twin-disc clutch assembly delivers 1250 lb-ft of holding capacity through solid-hub cerametallic discs, built for street/strip applications where positive, precise engagement is non-negotiable. Unlike many performance clutches cobbled together from OEM-type stamped steel pressure plates with a floater tacked on, the ST-246 was engineered from the ground up as a true twin-disc performance clutch.
The precision-machined aluminum clutch cover shares technology from Tilton's OT-Series racing clutches—the same line that has won championships in F1, NASCAR, IMSA, IndyCar, SCCA, Formula Drift, and SCORE. Heavy-duty straps attach the high-mass pressure plate and floater plate to the cover, minimizing noise while providing clean clutch release. The floater plate is twice the thickness of most competing twin-disc clutches, which translates to superior heat dissipation, eliminated gear clatter, and consistent engagement under hard use.
The included billet chromoly steel flywheel features an 8-bolt pattern, 153-tooth ring gear, and internal balance. A precision register locates the clutch assembly for optimal balance—unlike the loose-fitting bolts and dowels common in stamped steel designs. The chromoly construction delivers the strength and durability required for high-torque, high-RPM applications.
This C6 Corvette application includes a Tilton 6000-Series hydraulic release bearing with height preset at the factory. The 6000-Series HRB connects directly to the OEM clutch line and provides 0.700" of piston travel with nearly 1.25" of height adjustability. The self-adjusting bearing maintains constant contact with the pressure plate fingers without preload, eliminating the gap issues and helper springs associated with traditional throwout bearings. Compatible with 26-spline transmissions (26 x 1-1/8"). Pilot bearing is not included.

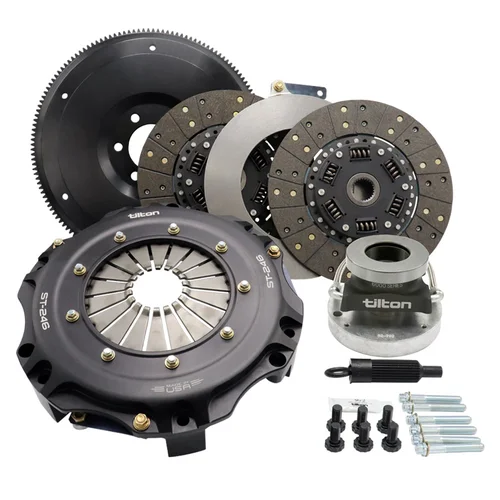

Kit Includes
- Billet chromoly steel flywheel with 153-tooth ring gear (8-bolt, internally balanced)
- Precision-machined aluminum pressure plate assembly
- Two cerametallic clutch discs with solid center hubs (246mm, 26 x 1-1/8" spline)
- High-mass strapped steel floater plate
- Tilton 6000-Series hydraulic release bearing (height preset for C6 Corvette)
- Stainless steel braided supply and bleed lines with -4AN fittings
- Flywheel mounting bolts
- Clutch mounting bolts
- Clutch alignment tool
- Installation instructions
