Key Features
- 3.5-inch 6061-T6 D.O.M. aluminum tube for significant weight reduction vs. steel
- 31-spline billet slip yoke matches TREMEC and other high-spline-count transmission outputs
- 1350 series U-joints rated for approximately 2,200 lb-ft of torque capacity
- Ford 8.8 aluminum flange with 3.5-inch bolt circle (4-bolt pattern)
- High-speed balanced for vibration-free operation
- Built by Inland Empire Driveline Service - one of the few Spicer-authorized aluminum driveshaft builders
- Rated for applications up to 1000HP at lengths up to 58 inches
- Custom-built to your exact vehicle measurements
Description

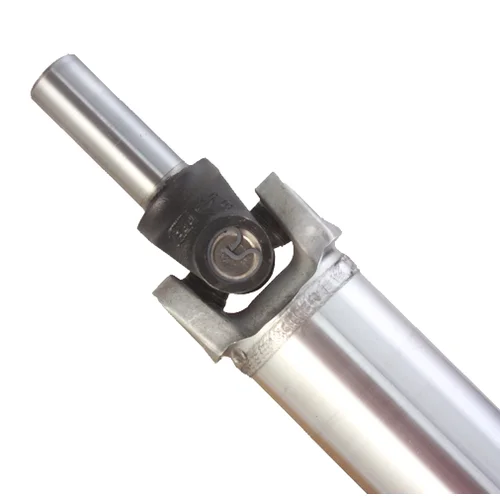

When you upgrade to a TREMEC or other performance transmission with a 31-spline output shaft, your factory driveshaft becomes a weak link. This custom aluminum driveshaft delivers the strength to handle serious power while slashing rotating mass compared to a steel unit. The 1350 series U-joints provide approximately 37% more torque capacity than smaller 1310 or 1330 joints, with larger 1-3/16-inch bearing caps that distribute loads more effectively under hard acceleration.
The 3.5-inch tube is manufactured from custom-drawn 6061-T6 D.O.M. aluminum for consistent strength and wall thickness. The 6061-T6 aluminum forged weld yokes maintain strengthened grain structure for maximum durability, while state-of-the-art welding processes ensure reliable joints that won't fail under stress. Every shaft is high-speed balanced for smooth, vibration-free operation whether you're cruising or running down the strip.
The Ford 8.8 aluminum flange features a 3.5-inch bolt circle with a 4-bolt pattern for direct fitment to 8.8-inch rear ends. This driveshaft is rated for applications producing up to 1000HP at overall lengths up to 58 inches - beyond that, consider stepping up to a larger tube diameter or 1410 series U-joints for adequate strength margins.
Built by Inland Empire Driveline Service, one of the few Spicer-authorized aluminum driveshaft builders in the world. Each shaft is custom-built to your exact measurements - simply complete the driveshaft build sheet and submit it to begin your order. Made in the USA.
Kit Includes
- 3.5-inch diameter 6061-T6 D.O.M. aluminum driveshaft tube
- 31-spline billet slip yoke
- Ford 8.8 aluminum flange (3.5-inch bolt circle, 4-bolt pattern)
- 1350 series U-joints
- High-speed balancing
- Professional assembly with precision welding
- Lifetime technical support
