Key Features
- 4.0" diameter aluminum tube - lightweight yet rigid construction for high-RPM applications
- 1350 series U-joints rated for 2,200 lb-ft torque capacity - handles up to 1200hp
- 31-spline forged steel slip yoke - built for high-torque reliability
- Custom lengths available up to 58" - fits virtually any application
- Significant weight reduction vs. steel - typically 10-20 lbs lighter depending on length
- Higher critical speed than steel - ideal for high-RPM street and racing applications
- Rust-resistant aluminum construction for long-term durability
- Professionally balanced for vibration-free operation at any speed
- Made in the USA
Description

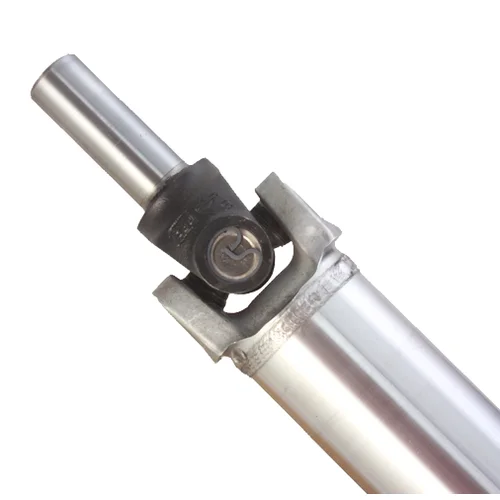

Drop serious rotating mass from your drivetrain with this custom-built aluminum driveshaft. Aluminum driveshafts typically weigh 10-20 pounds less than comparable steel units, and since that's rotating weight rather than static weight, the real-world impact on throttle response and acceleration is substantial. Less rotational inertia means your engine doesn't have to work as hard to spin the driveshaft, freeing up power that was previously wasted turning a heavier component.
Built around a 4.0" diameter aluminum tube, this driveshaft pairs lightweight construction with the strength needed for serious power. The 1350 series U-joints are rated for 2,200 lb-ft of torque capacity, making this shaft suitable for applications up to 1200hp. The forged steel 31-spline slip yoke handles high-torque loads without concern, while the larger diameter tube provides the rigidity needed for smooth, balanced operation at high RPM.
Aluminum's higher critical speed compared to steel makes it ideal for performance builds where you're pushing the rev limiter regularly. Where a steel driveshaft might begin to resonate and vibrate at high speeds, aluminum maintains stability - particularly important in longer one-piece applications. Aluminum also resists rust, giving it an edge in longevity over bare steel shafts exposed to moisture and road salt.
This is a custom-built component - we tailor every driveshaft to your specific measurements and application. Simply complete our driveshaft build sheet with your measurements and submit it to get your build started. Custom lengths available up to 58". Made in the USA with professional balancing and lifetime technical support.
Kit Includes
- Custom-length 4.0" diameter aluminum tube driveshaft
- Forged steel 31-spline slip yoke
- 1350 series universal joints (rated up to 1200hp)
- Professional balancing and assembly
- Lifetime technical support
How to Order
This is a custom item and requires measurements from your finished vehicle. Download and complete our driveshaft build sheet, then submit the completed form to info@moderndriveline.com to begin your build.
