Key Features
- Forged steel 27-spline slip yoke -- fits GM 3 and 4-speed manual, TH350, Powerglide, 700R4, 4L60, and 200-4R transmissions with 1-3/16in x 27 splined output shafts
- 1310 U-joints with 1-1/16in cap diameter and 3.219in overall width -- heat-treated forged steel construction
- 3in Direct Over Mandrel (DOM) steel tube -- 15% stronger than OEM specifications
- Professional high-speed balancing and black painted finish
- Custom lengths available up to 52 inches for precision fitment
Description

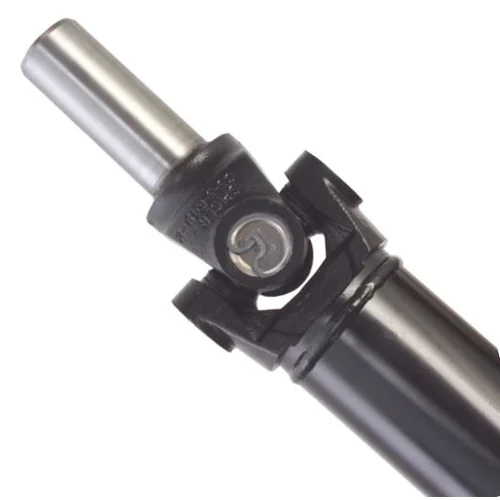

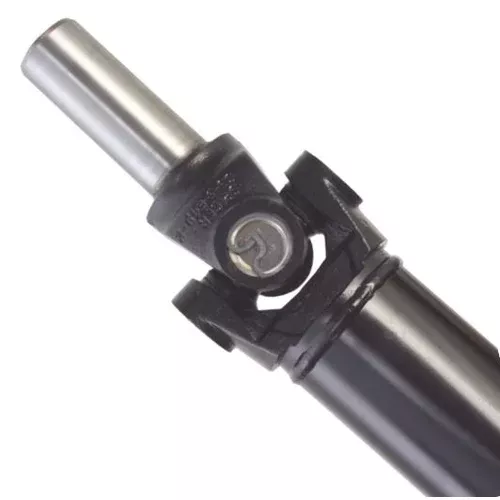

When your transmission swap or rebuild demands a driveshaft that delivers OEM-plus reliability without breaking the budget, this custom steel driveshaft gets the job done. Built around a 3-inch DOM steel tube that's 15% stronger than factory specifications, it's engineered to handle the power while maintaining the smooth operation your build demands.
The forged steel 27-spline slip yoke fits the common GM 1-3/16in x 27 splined output shafts found on GM 3 and 4-speed manual, TH350, Powerglide, 700R4, 4L60, and 200-4R transmissions. The 1310 U-joints feature 1-1/16in cap diameter and 3.219in overall width, delivering proven strength for street and performance applications. Heat-treated forged steel construction ensures these joints can handle the torque loads while providing long-term durability.
Each driveshaft is professionally balanced to eliminate vibration and finished with a durable black paint coating. The DOM steel construction provides superior strength-to-weight characteristics compared to welded tubing, while maintaining the cost-effectiveness that steel offers over aluminum alternatives. Custom lengths up to 52 inches ensure proper fitment for your specific application.
This is a made-to-order component requiring precise measurements from your finished vehicle. Ordering requires completion of MDL's driveshaft build sheet to ensure proper specifications. Made in the USA.
Kit Includes
- Custom steel driveshaft assembly with 3in DOM tube
- Forged steel 27-spline slip yoke
- 1310 U-joints (front and rear)
- Professional high-speed balancing
- Black paint finish
- MDL lifetime technical support
