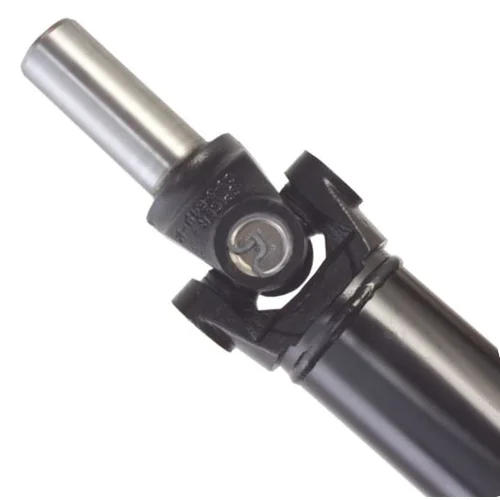

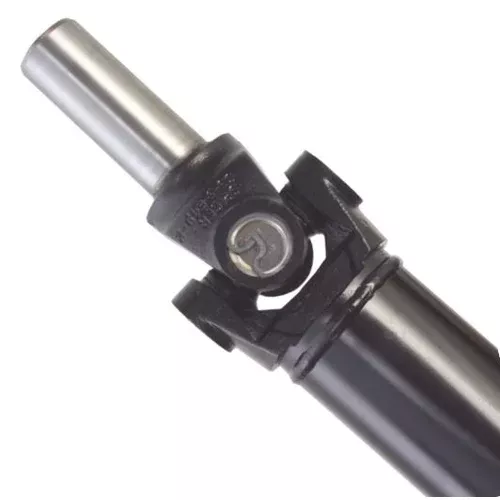

Custom Steel Driveshaft | 3.5" DOM Tube | 27-Spline Forged Yoke | 1310 U-Joints
Key Features
- 3.5" Drawn Over Mandrel (DOM) steel tube delivers superior concentricity, tighter tolerances, and higher tensile strength than standard welded tubing
- 27-spline forged steel slip yoke for maximum strength in high-torque applications
- 1310 series U-joints with 1.062" cap diameter and 3.219" cross width
- Custom length construction up to 60" center-to-center
- High-speed balanced for vibration-free operation
- Black painted finish for corrosion protection
- Made in the USA
Description
Swapping to a modern transmission often means your factory driveshaft no longer fits or lacks the strength to handle increased power. This custom steel driveshaft solves both problems with a built-to-order design that matches your exact center-to-center measurement and delivers the durability serious builds demand.
The 3.5" DOM (Drawn Over Mandrel) tube construction sets this driveshaft apart from off-the-shelf alternatives. DOM tubing starts as electric-resistance-welded steel, then gets cold-drawn over a precision mandrel to produce tighter dimensional tolerances, improved concentricity, and a denser, stronger structure than standard welded tubing. The result is a tube that balances easier, runs truer, and handles torsional loads without the weak points found in lesser driveshafts.
The 27-spline forged steel slip yoke provides the engagement strength needed for high-torque applications, while the 1310 series U-joints offer proven reliability for street and moderate performance use. Each driveshaft is professionally high-speed balanced and finished in black paint for a clean appearance and corrosion resistance.
This is a built-to-order component requiring precise measurements from your completed installation. Submit the completed Driveshaft Build Sheet to info@moderndriveline.com once your transmission is installed and your vehicle is at final ride height. Made in the USA.
Kit Includes
- Custom-length steel driveshaft with 3.5" DOM tube
- 27-spline forged steel slip yoke
- (2) 1310 series U-joints
- High-speed balancing
- Black painted finish
- Lifetime technical support
