Key Features
- 3" DOM steel tubing - 15% stronger than OEM cold-rolled construction
- 1310 series front U-joint (3.219" cap-to-cap width, 1.062" cap diameter)
- 1100 series rear U-joint (2.411" cap-to-cap width, 0.938" cap diameter)
- Forged steel 28-spline slip yoke for Ford transmissions
- Custom lengths available up to 54 inches
- High-speed computer balanced for vibration-free operation
- Durable black paint finish
- Made in the USA by Inland Empire

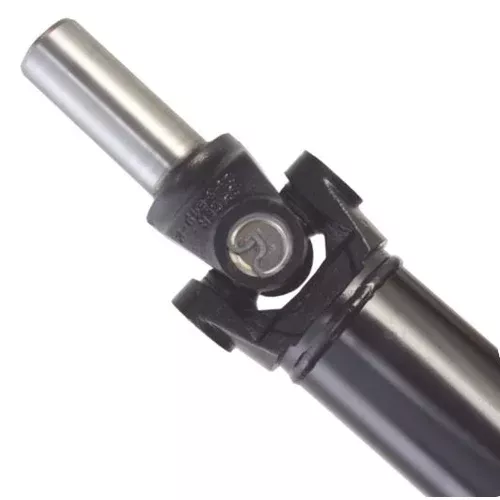

Description
When off-the-shelf driveshafts don't fit your build, MDL's custom steel driveshafts deliver precision-fabricated solutions tailored to your exact specifications. This unit pairs a 1310 series front U-joint with a smaller 1100 series rear U-joint - a combination commonly needed when connecting Ford transmissions to older rear ends or applications with unique pinion yoke requirements.
The 3" Direct Over Mandrel (DOM) steel tubing provides a 15% strength advantage over typical OEM cold-rolled construction. DOM tubing is straighter, rounder, and more consistent than factory driveshafts, which translates to better balance characteristics and reduced vibration at high RPM. The forged steel transmission yoke fits 28-spline Ford output shafts, making this driveshaft compatible with AOD, C4, T-5, T-10, Top Loader, and TREMEC TR3550 transmissions.
Every shaft is manufactured to exacting standards using cutting-edge driveline technology. Before final assembly, each tube is straightened beyond OEM tolerances to ensure the driveshaft spins true on its centerline. Computer-controlled high-speed balancing eliminates any residual imbalance that could cause vibration, while the black paint finish provides lasting corrosion protection. Maximum length is 54 inches - call MDL for longer applications that may require a two-piece shaft with center support.
Perfect for restoration projects, performance builds, and custom applications where factory or catalog driveshafts simply won't work. Built in the USA by Inland Empire with MDL's commitment to getting your drivetrain right the first time.
Kit Includes
- Custom steel driveshaft assembly (built to your specifications)
- Forged steel 28-spline transmission slip yoke
- 1310 series front universal joint (installed)
- 1100 series rear universal joint (installed)
- High-speed balancing service
- Black paint finish
- Lifetime technical support
How to Order
This is a custom-built driveshaft requiring precise measurements from your completed vehicle. Download the driveshaft build sheet, take your measurements, and submit the completed form to info@moderndriveline.com. Call 208-453-9800 for technical assistance, fitment questions, or pricing details.
