Key Features
- 3.5in DOM seamless steel tube - 15% stronger than OEM driveshafts
- 1310 series U-joints - 1.062in cap diameter, 3.219in width
- 28-spline forged steel cast yoke for positive engagement
- Custom lengths up to 60 inches center-to-center
- High-speed balanced for smooth, vibration-free operation
- Black painted finish for corrosion protection
- Made in the USA
Description

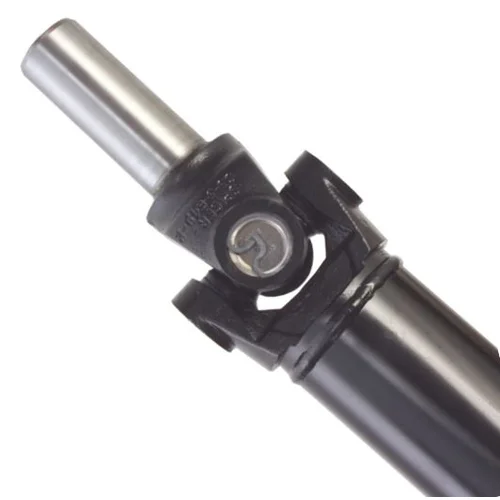

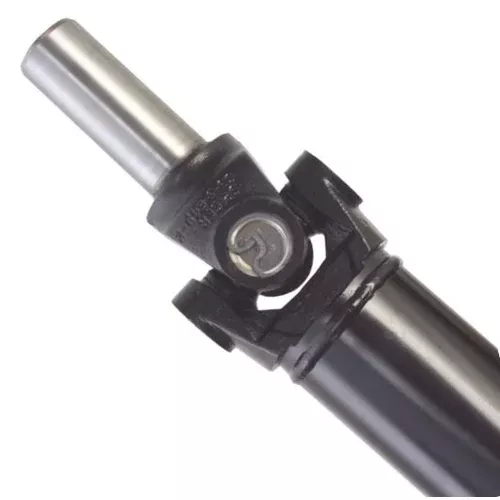

When your restoration or performance build demands a custom driveshaft solution, this steel driveshaft delivers the precision engineering and durability your project requires. Built using DOM (Drawn Over Mandrel) seamless steel tubing, this driveshaft provides superior strength and reliability for both street driving and performance applications. The DOM process creates more exact dimensional tolerances, improved surface finish, and enhanced torsional strength compared to standard electric-welded tubing - delivering 15% greater strength than OEM driveshafts.
The 3.5-inch DOM tube construction offers superior concentricity and uniform wall thickness, which are critical for proper balance and smooth power transfer. The proven 1310 series U-joints allow the driveshaft to spin freely without impediment while withstanding constant movement over extended service life. With a 1.062-inch cap diameter and 3.219-inch width, the 1310 series represents the standard for light-duty and street performance applications.
The 28-spline cast yoke ensures positive engagement with your transmission output shaft. Each driveshaft is professionally built to your specific measurements and high-speed balanced to eliminate vibration throughout the RPM range. The black painted finish provides corrosion protection while maintaining a clean, professional appearance.
This custom driveshaft requires specific measurements from your completed vehicle to ensure proper fitment. Simply download the build sheet, take your center-to-center measurements, and submit the completed form to start your order. Made in the USA with lifetime technical support.
How to Order
This item requires measurements to be taken from your vehicle when finished. Download the Driveshaft Build Sheet, record your center-to-center measurements, and submit the completed form to info@moderndriveline.com. Call 208-453-9800 with any questions.
Kit Includes
- Custom-length steel driveshaft with 3.5in DOM seamless tube
- 28-spline forged steel cast yoke
- 1310 series U-joints (factory installed)
- High-speed balancing
- Black painted finish
- Lifetime technical support
