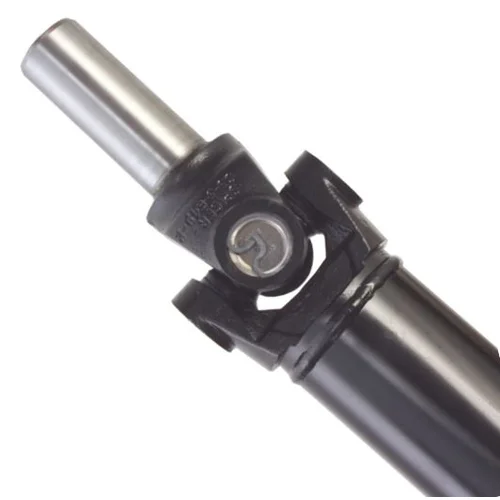

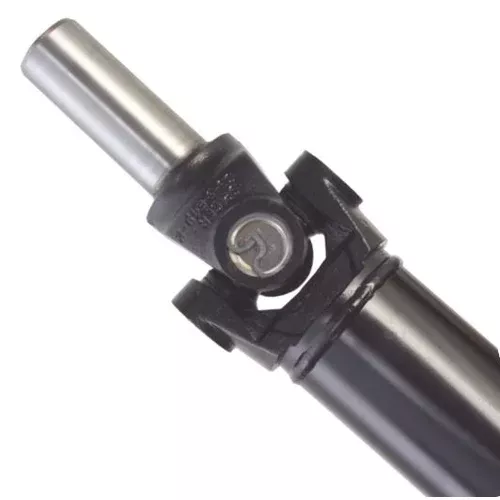

Custom Steel Driveshaft | 3.5-Inch DOM Tube | 28-Spline | 1330 U-Joints
Key Features
- 3.5-inch Drawn Over Mandrel (DOM) steel tube - 15% stronger than OEM construction
- 1330 series U-joints with 1.062-inch cap diameter and 3-5/8-inch width
- 28-spline forged steel slip yoke for positive engagement
- Custom lengths available up to 60 inches center-to-center
- High-speed balanced for vibration-free operation
- Professional black painted finish
- Made in the USA
Description
Factory driveshafts are engineered for economy, not performance. When you're building a restoration, swapping transmissions, or pushing more power than the OEM shaft can handle, this custom steel driveshaft delivers the strength and precision your drivetrain demands. Built to your exact specifications up to 60 inches center-to-center, each shaft is tailored to your vehicle's unique requirements.
The engineering starts with 3.5-inch DOM (Drawn Over Mandrel) steel tubing that's 15% stronger than OEM construction. DOM tubing offers superior torsional strength per pound compared to electric-welded alternatives, along with tighter ID/OD tolerances and less ovality - all of which translate to easier balancing and smoother operation. The 1330 series U-joints provide proven durability with 1.062-inch cap diameter and 3-5/8-inch width, while the 28-spline forged steel slip yoke ensures positive engagement with your transmission output shaft.
Every driveshaft undergoes high-speed balancing to eliminate vibrations that can destroy transmissions, differentials, and bearings over time. Whether you're completing a restoration project, replacing a worn factory shaft, or building a custom vehicle that demands reliable performance, this application-specific driveshaft is finished in durable black paint and built to professional standards. Made in the USA.
How to Order
This item requires precise measurements from your completed vehicle. Download and complete the Driveshaft Build Sheet, then submit the form to info@moderndriveline.com. For technical assistance or questions about your application, call 208-453-9800.
Kit Includes
- Custom-length steel driveshaft assembly built to your specifications
- 3.5-inch DOM steel tube
- 28-spline forged steel slip yoke
- Cast steel fixed yoke
- Two 1330 series U-joints
- Professional black painted finish
- High-speed balancing
- Lifetime technical support
