Key Features
- DOM (Drawn Over Mandrel) 3-inch steel tube - 15% stronger than OEM tubing
- 31-spline forged steel slip yoke for maximum strength
- 1330 series U-joints - 1.062-inch cap diameter, 3.625-inch width
- Custom length up to 52 inches center-to-center
- Professionally balanced for vibration-free operation
- Black painted finish for corrosion protection
- Made in the USA
Description

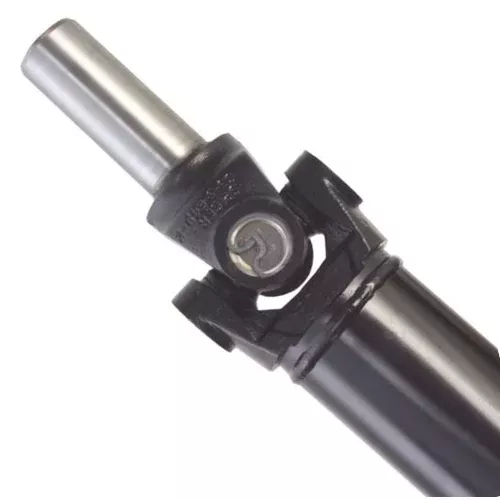

When you upgrade to a high-performance transmission or build serious horsepower, your factory driveshaft becomes a weak link. This custom steel driveshaft replaces undersized OEM tubing and economy-grade components with engineering designed for real power. Built to order with your exact measurements, it delivers the strength and precision your driveline demands.
The foundation is DOM (Drawn Over Mandrel) 3-inch steel tubing - 15% stronger than OEM construction. DOM tubing is drawn over a precision-machined mandrel during manufacturing, producing straighter, more concentric material with tighter tolerances than standard electric-welded tube. This precision matters at high RPM, where even minor imbalances create vibration and accelerate component wear.
The 31-spline forged steel slip yoke mates to transmissions including TREMEC TKO-500, TKO-600, T56 Magnum, Ford C-6, T-45, 3550, 3650, FMX, and Top Loader units. The 1330 series U-joints feature 1.062-inch cap diameter and 3.625-inch width, offering greater operating angle capability than 1310 series while maintaining compatibility with common pinion yokes. Every shaft is professionally balanced for smooth operation across the entire RPM range.
This is a custom-built component requiring accurate measurements from your completed vehicle. Use MDL's driveshaft build sheet to provide center-to-center length, transmission output spline count, pinion yoke series, and operating angle details. Made in the USA with precision manufacturing processes.
Kit Includes
- Custom steel driveshaft with 3-inch DOM tube
- 31-spline forged steel slip yoke
- 1330 series U-joints installed
- Professional high-speed balancing
- Black painted finish
- Lifetime tech support from MDL
How to Order
This item requires measurements from your completed vehicle. Download the driveshaft build sheet, fill out all required fields including center-to-center length and pinion yoke information, and submit to info@moderndriveline.com. Contact MDL at 208-453-9800 with questions.
