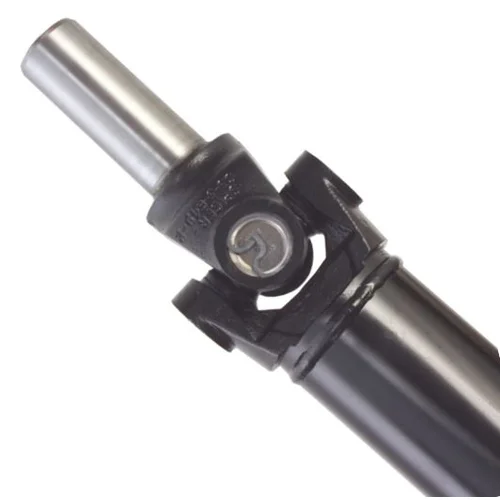

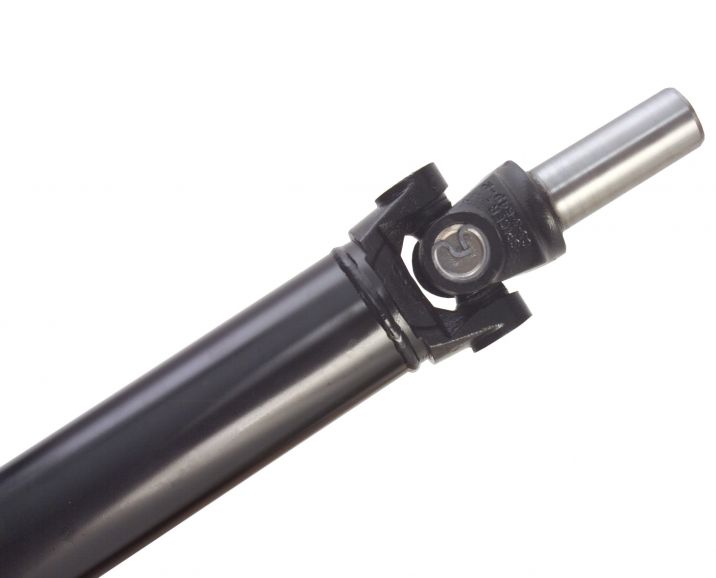

Key Features
- 4.0" diameter DOM (Drawn Over Mandrel) seamless steel tube - 15% stronger than OEM tubing
- 31-spline forged steel slip yoke for maximum strength and durability
- 1350 series U-joints with 1-3/16" cap diameter and 3-5/8" overall width
- High-speed balanced to tighter tolerances than OEM specifications
- Custom length capability - built to your exact vehicle measurements
- Black painted finish for corrosion resistance
- Made in the USA with lifetime tech support
Description
When your build demands strength beyond factory limits, this custom steel driveshaft delivers the reliability you need. Steel remains the most popular driveshaft material due to its versatility, high strength, and economical price - making it the ideal foundation for performance street cars, restorations, and moderate-to-high power applications.
The backbone of this driveshaft is 4.0" outside diameter DOM seamless steel tubing. The DOM manufacturing process produces tubing that's significantly stronger, straighter, and more concentric than standard electric-welded tubing - resulting in 15% greater strength than OEM driveshafts while maintaining excellent balance characteristics. A forged steel 31-spline slip yoke provides the transmission connection, while 1350 series U-joints handle the power transfer with their proven heavy-duty design featuring 1-3/16" bearing cap diameter and 3-5/8" overall span.
Each driveshaft is application-specific and requires your vehicle's exact measurements. Driveshaft dimensions are checked in specialized computer software to ensure the shaft design, dimensions, and critical speeds suit your application. Every shaft is high-speed balanced on the latest driveline manufacturing equipment with balance weight allowances far less than OEM specs, ensuring smooth operation at all RPM ranges.
Compatible with Ford, GM, and Mopar applications requiring a 31-spline output - including TREMEC TKX, TKO, T56 Magnum, and other performance transmissions. Made in the USA with MDL's lifetime technical support.
Kit Includes
- Custom-length steel driveshaft with 4.0" diameter DOM tube
- 31-spline forged steel slip yoke
- 1350 series U-joints (front and rear)
- High-speed balancing service
- Black painted finish
- Custom Driveshaft Build Sheet (PDF download required for ordering)
- Lifetime technical support
How to Order
This item requires measurements from your completed vehicle. Download and complete the Driveshaft Build Sheet, then submit it to info@moderndriveline.com. Call 208-453-9800 with any questions.
