Key Features
- 2-3/8" (2.375") female pilot diameter for precise centering and alignment
- 1310 series universal joint compatibility with 1.062" bearing cap diameter
- 1.375" bolt circle with four pre-drilled 0.375" bolt holes
- 3.875" swing diameter with 3.125" bolt circle pattern
- Outside snap ring style for standard 1310 universal joints
- 3.219" u-joint width between snap rings
- Genuine Dana SPICER brand construction for OEM-quality reliability
- Precision machined steel construction
Description

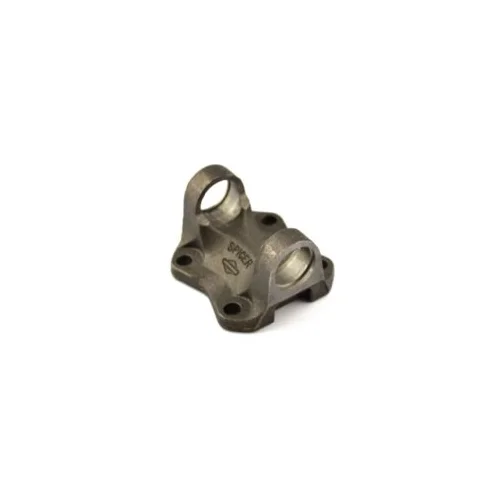

When you need to connect a 1310 series driveshaft to a component with a 2-3/8" pilot and 1.375" bolt circle, this genuine Dana SPICER flange delivers the precision fit your drivetrain demands. The female pilot design centers perfectly on 2.375" pilots, eliminating runout and vibration that can destroy bearings and u-joints over time.
Engineered for 1310 series universal joints with the standard 3.219" snap ring spacing and 1.062" bearing caps, this flange maintains proper joint geometry for maximum strength and smooth operation. The 1.375" center-to-center bolt spacing on the flange face provides the exact dimensions needed for solid, vibration-free mounting in applications where this specific bolt pattern is required.
Built to genuine SPICER specifications with precision-machined steel construction, this flange handles the torque loads and operating angles that aftermarket copies simply cannot match. The four pre-drilled 0.375" bolt holes eliminate field modifications, while the outside snap ring configuration ensures compatibility with standard 1310 u-joints from any manufacturer.
Direct replacement for OEM applications or custom driveline builds requiring this specific pilot and bolt pattern combination. Always verify your existing measurements before ordering to ensure proper fitment.
Kit Includes
- (1) Dana SPICER steel driveshaft flange
- Precision machined 2-3/8" female pilot
- Four pre-drilled 0.375" bolt holes
- Outside snap ring grooves for 1310 series universal joints
