Brake / Clutch and Throttle Pedal

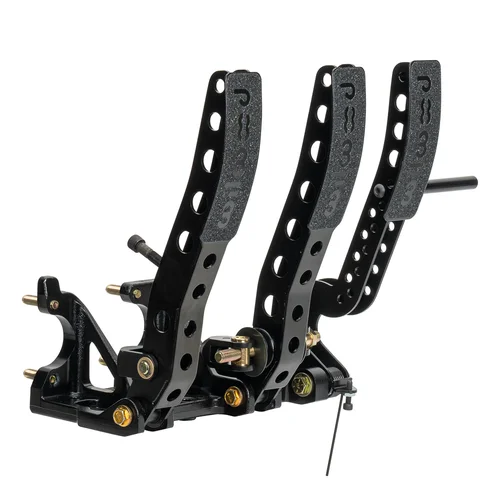

Wilwoods new floor mount pedal assembly has a brake / clutch / throttle triple pedal design.
There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle.
Pedal assembly part number 340-12410 is for rear engine cars and does not include a throttle bell crank and linkage.
This unit features an aluminum frame with strong lightweight fabricated steel pedal arms.
The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance.
Also included with the pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth and accurate settings of the brake pedal bias.
The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments.
The pedal assembly provides a 5.25 to 1 nominal ratio.
| Pedal Type | |
|---|---|
| Material | Aluminum / Steel |
| Finish | Black E-coat |
| Pedal Description | |
| Mount Loc | Floor |
| Mount Facing | Forward |
| Balance Bar | Yes |
| Mount Length (in) | 11.40 |
| Pedal Ratio & Length | |
| Pedal 1 Ratio | 5.25 to 1 |
| Pedal 2 Ratio | 5.25 to 1 |
| Pedal 1 Length (in) | 10.66 |
| Pedal 2 Length (in) | 10.66 |
| Additional Pedal Dimensions | |
|---|---|
| Mount Length (in) | 11.40 |
| Pedal 1 Length (in) | 10.66 |
| Pedal 2 Length (in) | 10.66 |
