Key Features
- Kevlar facing on flywheel side, organic on pressure plate side for balanced grip and smooth engagement
- 10-spline, 1-1/16-inch hub for Ford 10.4" metric pattern applications
- 300 lb-ft torque capacity rated for Performance Street Plus use
- Hand-assembled in-house with double-riveted construction for quality assurance
- Diaphragm pressure plate with 8mm metric bolt pattern and alignment dowels
- Sprung hub disc absorbs drivetrain shock for street-friendly manners
- Cable-style throwout bearing included for direct installation
- Backed by 1-year free-from-defect warranty
- Made in the USA
Description
This Superior clutch set delivers the ideal balance between holding power and street driveability for Ford applications using the 10.4" metric bolt pattern. The hybrid facing configuration puts Kevlar on the flywheel side for increased grip and heat resistance, while the organic facing on the pressure plate side ensures smooth, progressive engagement without the chatter associated with aggressive racing clutches. This combination makes the clutch ideal for Performance Street Plus applications where you need 300 lb-ft torque capacity without sacrificing daily-driver manners.
The engineering behind this facing combination is deliberate. Kevlar provides approximately twice the service life of standard organic materials while maintaining excellent heat dissipation characteristics. Pairing it with organic on the opposite side moderates engagement behavior, giving you confidence at stoplights and in parking lots while still delivering when you need to put the power down. The sprung hub design further smooths engagement and absorbs drivetrain shock.
MDL's Superior line clutches are hand-assembled in-house rather than mass-produced overseas. Every disc is double-riveted and inspected for exacting tolerances before it goes in the box. The included cable-style throwout bearing, pilot bearing, and alignment tool mean you have everything needed for a complete installation. The diaphragm pressure plate uses 8mm metric fasteners with three alignment dowels in the Ford 10.4" metric pattern.
Compatible with Ford vehicles using the 10.4" metric flywheel pattern and 10-spline transmission input shafts. Made in the USA with MDL's commitment to precision manufacturing and backed by lifetime technical support.

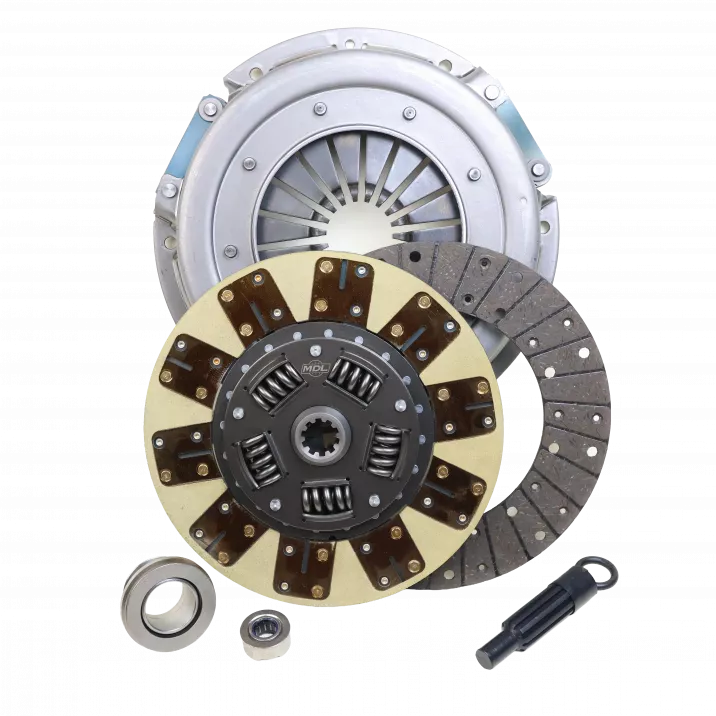

Kit Includes
- Diaphragm pressure plate with 8mm metric bolt pattern
- Clutch disc with Kevlar/organic facings, sprung hub, 10-spline x 1-1/16" center
- Cable-style throwout bearing
- Pilot bearing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
- Lifetime technical support
