Key Features
- Kevlar facing on flywheel side for smooth engagement; ceramic facing on pressure plate side for aggressive bite and heat resistance
- 575 lb-ft torque rating for aggressive street and drag racing applications
- 10.4" metric bolt pattern with 8mm pressure plate bolts and 3 alignment dowel pins
- 10-spline x 1-1/16" sprung hub clutch disc for cable-actuated Ford transmissions (T-5, 3550, TKO, TKX)
- Double-riveted construction for durability and flawless operation
- Iron-infused ceramic material creates more friction as temperature increases
- Hand-assembled in-house with exacting standards and finest components available
- 1-year free-from-defect warranty
- Made in the USA
Description
When you need maximum torque capacity in a 10.4" footprint but can't increase disc diameter or pressure plate clamping force, friction material is your lever. This Superior Series clutch uses a hybrid facing configuration--Kevlar on the flywheel side for smooth initial engagement, ceramic on the pressure plate side for aggressive bite and superior heat resistance. Ceramics and semi-metallics have a higher coefficient of friction than organic or full-Kevlar materials, so the disc bites harder and holds more power given the same clamping force.
The ceramic facing contains iron particles that actually increase friction as temperature climbs--exactly what you need during repeated hard launches or sustained track abuse. This makes the hybrid configuration ideal for drag racing launches and road racing heat cycles where standard organic facings would glaze or fade. The Kevlar side keeps initial pedal feel smooth and progressive rather than grabby, so you get race-ready holding power without sacrificing street manners.
All MDL Superior clutches are hand-assembled in-house with absolute care, using the finest components available. Every assembly is double-riveted to maintain quality and flawless operation, then checked and double-checked for accuracy before shipping. You receive a ready-to-install premium product right out of the box. This kit is configured for Ford applications requiring the 10.4" metric bolt pattern (8mm bolts with 3 dowel pins), a 10-spline x 1-1/16" input shaft, and cable-style throwout bearing--compatible with T-5, 3550, TKO, and TKX transmissions.

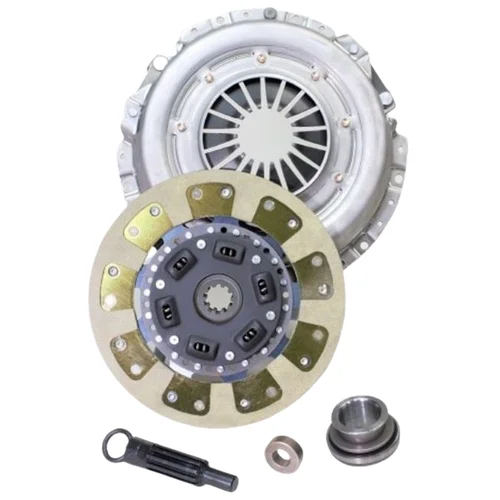

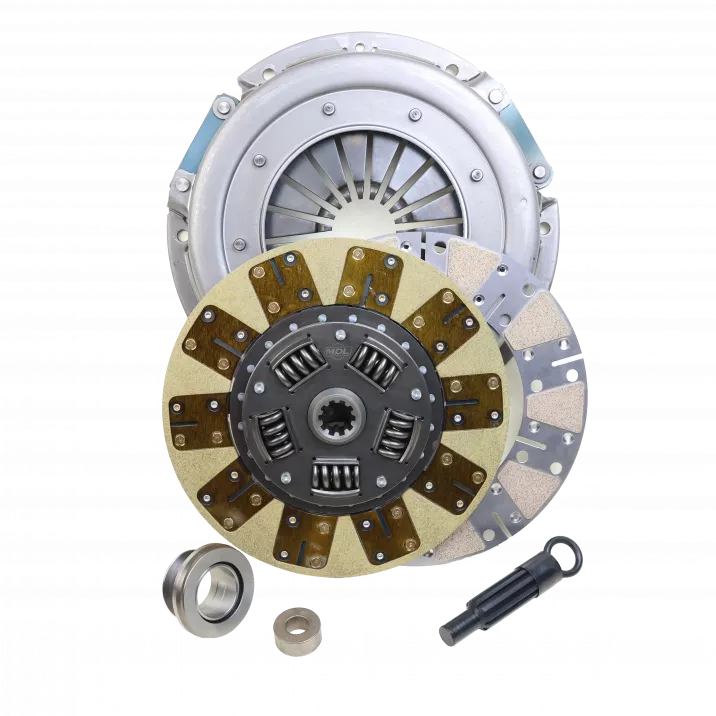

Kit Includes
- Diaphragm-style pressure plate with 10.4" metric bolt pattern (8mm bolts, 3 alignment dowel pins)
- 10.4" clutch disc with Kevlar/ceramic facings and 10-spline x 1-1/16" sprung hub
- Cable-actuated throwout bearing
- Pilot bearing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
