Superior 10.4" Metric Clutch Set | Kevlar/Kevlar | 26-Spline | 1986-1995 Ford
Key Features
- Dual Kevlar facings on flywheel side and pressure plate side for smooth engagement and long life
- 500 ft-lb torque capacity handles serious power without chatter
- Heavy-duty diaphragm pressure plate delivers consistent clamping force
- 26-spline, 1-1/8" clutch disc fits upgraded transmission applications
- 10.4" metric bolt pattern with three alignment dowel pin holes for precise indexing
- Cable-profile throwout bearing also compatible with hydraulic release systems
- Sprung hub design absorbs driveline shock for smoother engagement
- 8mm pressure plate bolts for secure mounting
- Hand-assembled in the USA and double-checked before shipping
- 1-year free-from-defect warranty included
Description
Upgrading to a TREMEC TKO, TKX, or other 26-spline transmission in your 1986-1995 Ford? You need a clutch that matches the stronger input shaft. This MDL Superior clutch set delivers 500 ft-lb of torque capacity with dual Kevlar facings that engage smoothly and hold up to repeated heat cycles - making it ideal for performance street driving and open tracking where you need reliable power transfer without the harshness of full ceramic.
The 10.4" metric pattern matches the larger-diameter flywheel Ford adopted in the mid-'80s, providing more surface area and higher torque capacity than earlier designs. Kevlar facings on both the flywheel side and pressure plate side offer an excellent balance between grip and streetability - you get the holding power you need without the aggressive bite that makes stop-and-go traffic miserable. The sprung hub design further smooths engagement by absorbing driveline vibration and shock loads.
The cable-profile throwout bearing included in this kit also works with hydraulic release systems, giving you installation flexibility regardless of your clutch actuation setup. Three alignment dowel pin holes in the pressure plate ensure precise clocking to the flywheel. The 26-spline, 1-1/8" disc fits the heavier-duty input shaft found in Ford TKO-600, TKX, and other upgraded transmissions where the factory 10-spline setup wasn't strong enough.
All MDL Superior clutches are hand-assembled in-house and double-checked for accuracy before they go in the box. This isn't a generic import kit - every component is inspected to ensure quality and flawless operation right out of the box. Made in the USA and backed by a 1-year free-from-defect warranty plus lifetime tech support from MDL's drivetrain specialists.

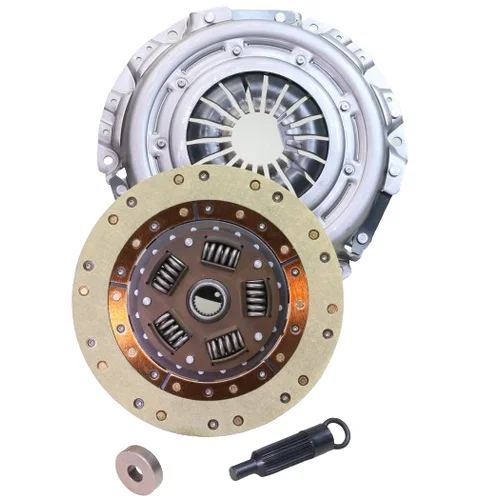

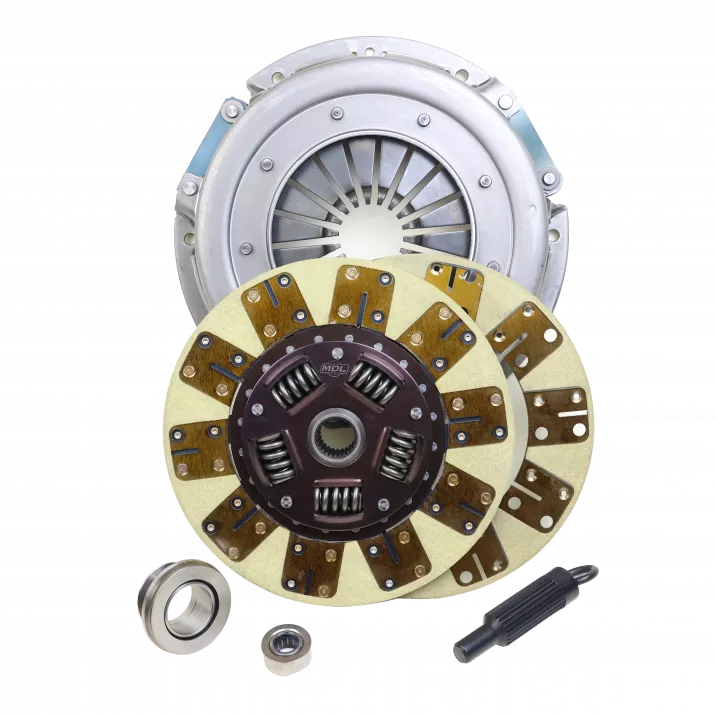

Kit Includes
- Heavy-duty diaphragm pressure plate with 10.4" metric bolt pattern and three alignment dowel pin holes (uses 8mm bolts)
- 26-spline, 1-1/8" clutch disc with Kevlar facings on both sides and sprung hub
- Cable-profile throwout bearing (hydraulic compatible)
- Pilot bearing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
- Lifetime technical support
