Key Features
- Kevlar/Ceramic facings rated at 550 ft-lb torque capacity for aggressive street and street-drag applications
- 11" long pattern with 3-3/8" bolt spacing using 5/16"-18 pressure plate bolts
- 12-3/8" diaphragm pressure plate delivers consistent, progressive clamping force
- 26 x 1-1/8" splined hub with sprung design for smooth engagement
- Hand-assembled clutch disc with double-checked tolerances for flawless operation
- Mechanical throwout bearing included for cable and mechanical release systems
- Performance Proven engineering—tested on and off the track
- Made in the USA with a 1-year free-from-defect warranty
Description
When you need serious holding power but can't step up to a larger clutch diameter, the Kevlar/Ceramic facing combination delivers. Ceramics have a higher coefficient of friction than organic materials, which means harder bite and more holding capacity for a given clamping force. The ceramic side also contains iron particles that actually increase friction as temperature rises—so the clutch gets stronger under heat and abuse, exactly when you need it most.
This Superior clutch set is designed for Ford small blocks (302, 351, 400M) using the 11" long bolt pattern—the classic three-bolt configuration with 3-3/8" spacing and 5/16"-18 pressure plate bolts. The 12-3/8" diaphragm pressure plate provides smooth, progressive engagement without the heavy pedal effort of a Long-style setup, making it streetable while still delivering serious clamp load for spirited driving and weekend drag duty.
The 26 x 1-1/8" splined hub matches Ford small block applications with the standard input shaft, and the sprung hub design dampens drivetrain shock for smoother engagement. Mechanical actuation works with both cable and traditional mechanical release systems, giving you flexibility across a wide range of classic Ford builds.
Every Superior clutch disc is hand-assembled in-house at MDL. Each disc is checked and double-checked for accuracy to exacting tolerances before it ships—so you get a ready-to-install premium piece right out of the box. Made in the USA and backed by a 1-year free-from-defect warranty.

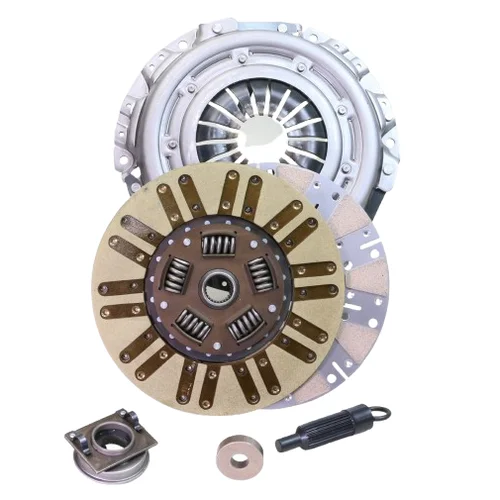

Kit Includes
- 12-3/8" diaphragm pressure plate
- 11" clutch disc with Kevlar/Ceramic facings and 26 x 1-1/8" splined hub
- Mechanical throwout bearing
- Clutch alignment tool
- 1-year free-from-defect warranty
Note: This kit does not include a pilot bearing. Please ensure you have one or contact MDL sales staff for a recommendation.
