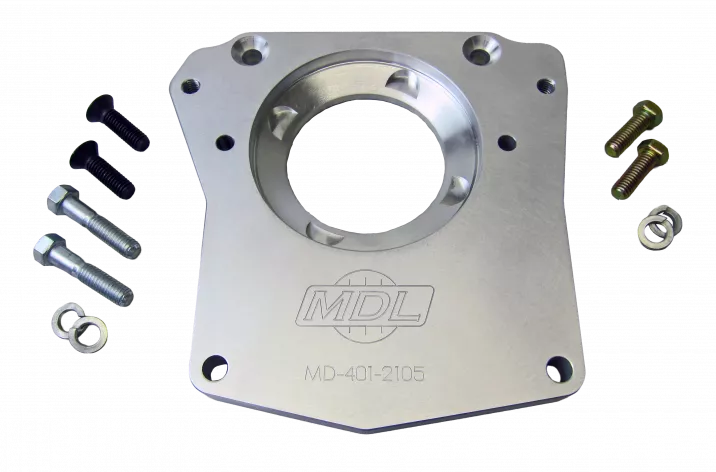

MDL, Ford Narrow Pattern & Y-Block to Ford Front Shift T5 Adapter Plate (No Rotation)

Adapter Plate, Y-block/Narrow pattern Ford to Ford Front Shift T5
Fits:

• Narrow pattern Ford/Y-block car bellhousing to 1983-93 Ford, or Y-block truck to 1994-04 Ford Front shift T5, (No rotation)
• Bell # Truck TAAB-7505, TAAC-7505-A, & TAAM-7505-B
• Y-block to Ford Front shift T5, (No rotation)
• (1954-56 and 1961-64) 223ci 6 Cylinder TAAA-7505-A, TAAK-7505-B

Comes with Hardware This adapter fits both the passenger car Y-block bellhousing to '83-93' Ford T5 (input shaft 7.2" long) and the Y-block TAAB7505 truck bellhousing to a '94-04' Ford T5 input shaft (7-7/8" long). This same adapter also fits the Narrow pattern SBF 260-289 five bolt bellhousings and early big block FE bellhousing with no rotation in the T5 bellhousing pattern. T5 mounting bolt pattern has been clocked 'straight up' for the Front shift T5 tail shaft housing leaving the transmission mount flat.

• If you need an adapter for Early Ford narrow pattern to T5 see item # MD-410-2105

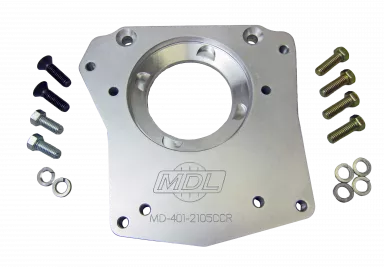

• If you need an adapter with a T5 bolt pattern that has been clocked '5 degrees CCW' for Stock Ford T5 to place the mount flat see item # MD-401-2105CCR

See front shift T5 transmission MD-552-0251-FS-R, or MD-552-0251-FS-F

• Machined from 6061 billet Aluminum
• Precision CNC machined for high quality and fit
• Transmission alignment to bell maintained
• Machined for specific applications
• Machined in logo and part number
• The best part, it is made in the USA!

............
