Key Features
- Stainless steel threaded adjustment sleeve provides nearly 1.25 inches of height adjustability
- 0.700-inch piston travel for reliable clutch engagement across diverse applications
- High-temperature monoseal design with quad tensioner ensures proper seal tension and maximum reliability
- Constant-contact design self-adjusts for clutch wear - no gap, no helper springs required
- Flat face bearing with 1.71-inch to 3.03-inch contact diameter fits most 8.5-inch to 11-inch bent-finger and lever-type clutches
- Bearing height adjustable from 1.77 inches to 3.00 inches to accommodate diverse clutch configurations
- Complete kit includes -4AN stainless braided supply and bleed lines, fittings, and anti-rotation hardware
- Requires 1.430-inch bearing retainer guide tube for proper fitment
Description
Eliminate the clearance issues and binding problems that plague external slave cylinders with this Tilton 6000 Series hydraulic release bearing, engineered specifically for Ford T56 and Magnum transmissions equipped with a guide tube. Where external slaves often create interference with headers, crossmembers, or bellhousing configurations, this internal slip-on design mounts directly onto the transmission input shaft bearing retainer - delivering consistent clutch actuation without the packaging headaches.
Tilton's precision-machined billet aluminum body and piston deliver race-proven reliability in a street-friendly package. The constant-contact design maintains continuous engagement with the pressure plate fingers - no gap to manage, no helper springs required. As your clutch wears, the bearing automatically compensates, maintaining identical pedal feel from installation through replacement. The high-temperature monoseal with quad tensioner provides maximum seal integrity under demanding conditions, while newly designed double O-ring swivel fittings have been extensively tested to prevent leakage.
The stainless steel threaded adjustment sleeve provides nearly 1.25 inches of adjustability, enabling compatibility with most 8.5-inch to 11-inch bent-finger and lever-type diaphragm clutches. Total bearing height ranges from 1.77 inches to 3.00 inches, giving you the flexibility to dial in precise preload regardless of clutch configuration. Compatibility extends to most bellhousings - unlike external slaves limited to specific applications, this internal design works with original 4-speed bells, big block bells, and aftermarket housings. Compatible with Ford T5s, Ford TKOs, Ford T56s with CSC hydraulic setup, and XL Magnum T56 for 2005+ Ford Mustangs. Tilton release bearings are DOT3 or DOT4 brake fluid compatible.

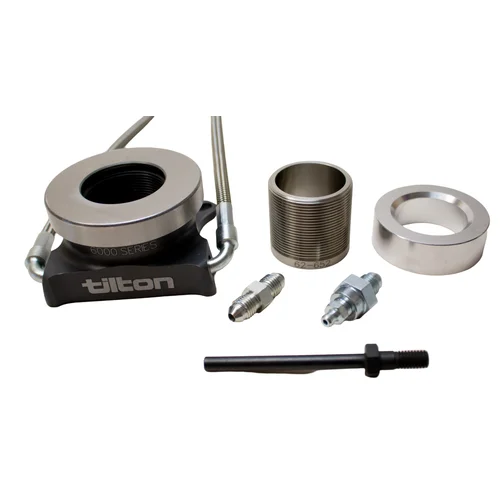

Kit Includes
- Tilton 6000 Series hydraulic release bearing with billet aluminum body and piston
- Stainless steel threaded adjustment sleeve
- -4AN stainless steel braided supply line
- -4AN stainless steel braided bleed line
- Union fitting for main supply line connection (24-inch line recommended for most applications)
- Anti-rotation bolt
- High-strength transmission retainer bolt
- Installation instructions
